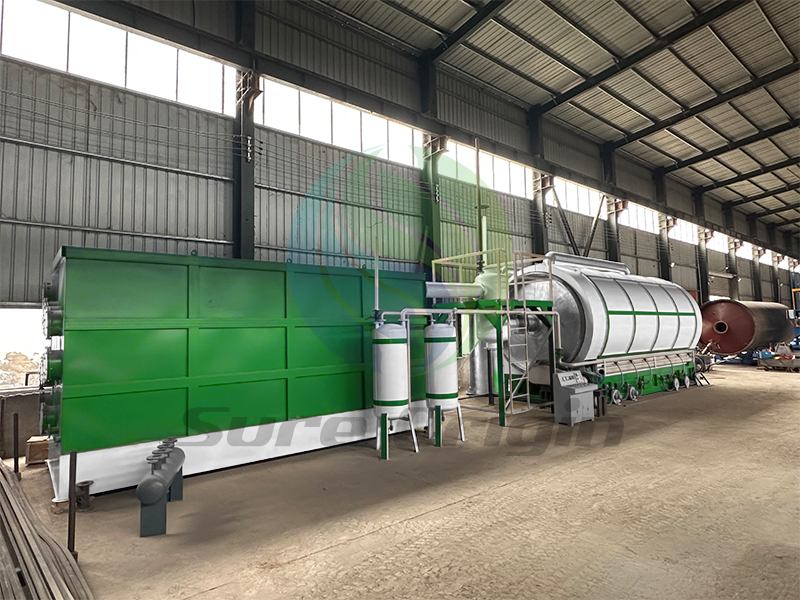

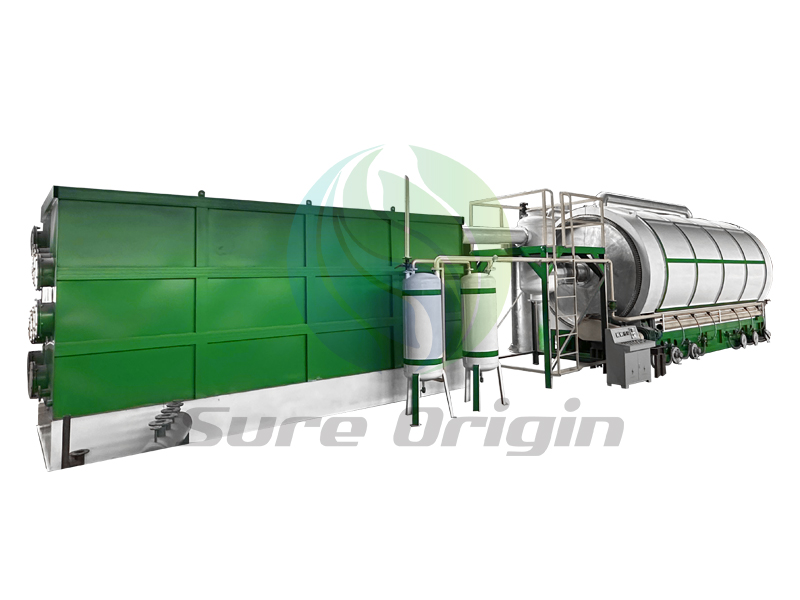

Mobile Biochar Machine

for converting a small amount of biomass waste and industrial waste into biomass charcoal.
0.3 m³/h - 0.5 m³/h
Mobile biochar machine is good equipment for converting a small amount of biomass waste and industrial waste into biomass charcoal. It is also called skid-mounted biochar making machine. It has a modular design for easy mobility. And, its safety performance is good. Therefore, this equipment is a good helper for recycling forest waste, agricultural waste, and industrial waste. If you are interested, please contact us.
Overviews
Sure-Origin skid-mounted charcoal making machine refers to mobile equipment that converts small-scale materials into biomass charcoal in a high temperature and oxygen-free environment. This green charcoal making machine is lightweight and compact. This is an excellent helper for recycling forest biomass waste, agricultural biomass waste, and some industrial biomass waste.
Compared with burning waste, rotatable covered cavity kiln (RoCC), and Top-lit updraft gasifier (TLUD Kiln), Sure-Origin mobile biochar making machine is more efficient, safe and environmental-friendly. And the charcoal production rate is high. And the final charcoal has good quality. Keep reading to learn more information.
Raw Materials
The movable charcoal making machine is rich in configuration and has a wide range of applications. Many raw materials can be recycled by this equipment. Waste raw materials mainly include forest biomass waste, agricultural biomass waste, industrial organic waste and domestic organic waste.
In order to ensure better carbonization effectiveness, this biomass pyrolysis machine has requirements on the size and moisture of the material. The size of the material should be less than 2 cm. Moisture should be less than 15%. See recyclable materials.
1. Forest biomass waste: branches, sawdust, lumber, etc.
2. Agricultural biomass waste: coconut husks, bamboo, palm husks, rice husks, peanut husks, stalks, olive seed husks, coffee bean husks, bagasse, etc.
Working Process
The First Step
Feed materials into wind shelter. Make sure the material meets the feeding requirements, including size and moisture. The size is no more than 2cm. The moisture is no more than 15%. Sure-Origin provides different specifications of dryer and crushing machine to investors. Contact us to know the need for these devices.

The Second Step
Heat the mobile charcoal making furnace with diesel burner. When the temperature reaches 150 degrees, materials begin to react. In this process, oil gas is generated. When temperature reaches 300 degrees, the charcoal, wood vinegar and tar are generated gradually in the biochar furnace. They are collected respectively.

The Third Step
The syn-gas will be processed by several procedures, including hydroseal and cyclone emission dedustor. It is collected to heat the syn-gas burner. So, investors could save on fuel costs.

The Fourth Step
The final hot smoke will be processed by a condenser and spray tower. The final discharged smoke meets the Europe emission standards. Investors don’t need to worry about environmental pollution.
Main Components
This type mainly contains nine systems. They are feeding system, furnace system, discharging system, combustible gas recycling system, burning system, de-dusting system, frame base system, condensing system, and control system. The following picture shows the main parts of these systems. If you wanna know more detailed information, contact us right now.
Advantages
Mature Technology and Guaranteed Machine
This model is a new product developed by Sure-Origin technology research and development department and production department. The entire equipment has undergone repeated experiments and quality inspections. And the carbonized materials have good quality.
In strict accordance with ISO9001 regulations, the whole process implements IPD card with inspection, records and saves. It has strong controllability and accurate traceability.

Unique Design
This machine has a skid-mounted design. That means that no special foundation is required. And it is easy to transport and install for investors. At the same time, some transportation and installation costs are also reduced for investors.
There are access holes in key parts. This provides convenience for maintenance in the future. Besides, there are many other designs. Contact Sure-Origin for more information.

Easy to Operate
This charcoal manufacturing equipment has a high degree of automation. And it can work continuously. Each key part is equipped with temperature and pressure sensor feedback.
The seal is automatically tensioned and adjusted. Accordingly, this design will prolong the its service life.

Energy-saving Design
It is equipped with a heating heat exchanger. The thermal efficiency is increased by 5%-10%. This special design will help customers to save some fuel cost.
Combustible gas can be recycled and reused in the chamber. In addition, the water in the de-dusting system also can be recycled.
Applications
The final product mainly is charcoal. The charcoal can be made into charcoal briquettes by Sure-Origin charcoal briquette making line, including charcoal balls, charcoal rods, charcoal pellets, charcoal powder, etc. If you have this need, tell Sure-Origin. And this charcoal has wide applications. See their uses.
It can be used for cooking, like BBQ, stove, etc
It is a great alternative for fuel in industries.
It can be used to improve soil in the agriculture.
Mobile charcoal making machine is a good option for small-scale charcoal making business. It installs and moves easily. If customers need a movable machine, it is a good option. This type of machine have high charcoal output rate. Moreover, the production process won’t have pollution to the environment. Contact us to get this machine right now.
Technical Parameters
For mini charcoal making machine, Sure-Origin provides one model – TMT-05 Pro. It can work for 72-100 hours continuously. Feeding and discharging are at the front end of the main furnace. Moreover, the discharger is equipped with three water-cooling dischargers. The electric control cabinet is configured with the Internet of Things for a wide range of automation applications.
If you are interested in this biomass carbonization equipment, please pay attention to the following parameters, for example, input capacity, installation area requst, service life.
Model TMT-05 Pro (skid-mounted)
Input Capacity 0.3-0.5m³/h (300kg/h)
Reactor Size φ830mm*L5500mm
Land for Equipment (L*W*H, Standard Configuration) 10m*8m*3.9m
Weight (Standard Configuration) 15T
Energy Consumption (Standard Configuration) 31kw/h
Working Method Fully continuous
Feeding Requirement Size: ≤20mm; moisture: ≤15%; strong liquidity
Structure Double barrel single hearth
Speed 1-9RPM
Control Method Automatic control
Pressure Micro negative pressure
Reactor Material Q245R
Heating Material Diesel, natural gas, heavy oil, biomas, etc.
Heating Method Direct heating
Noise (dB) ≤80
Condenser Circulating water cooling
Rotation Method External gear rotation

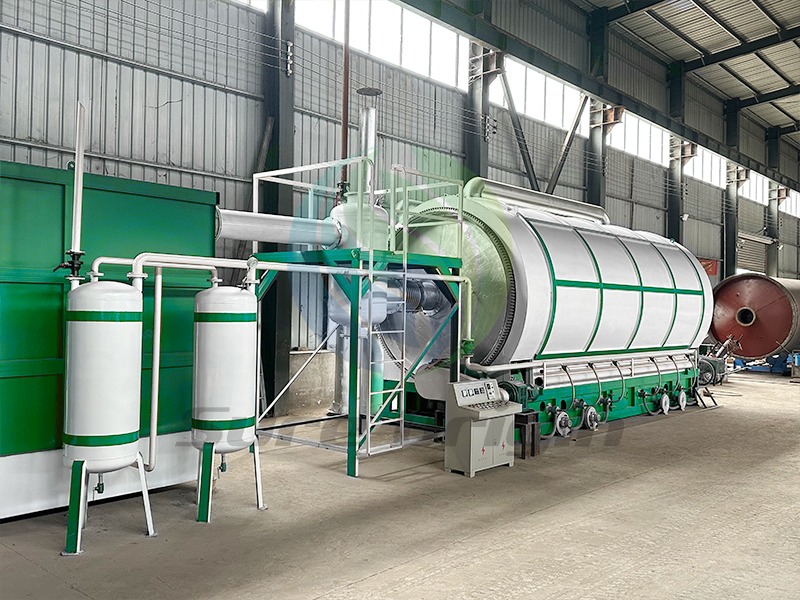

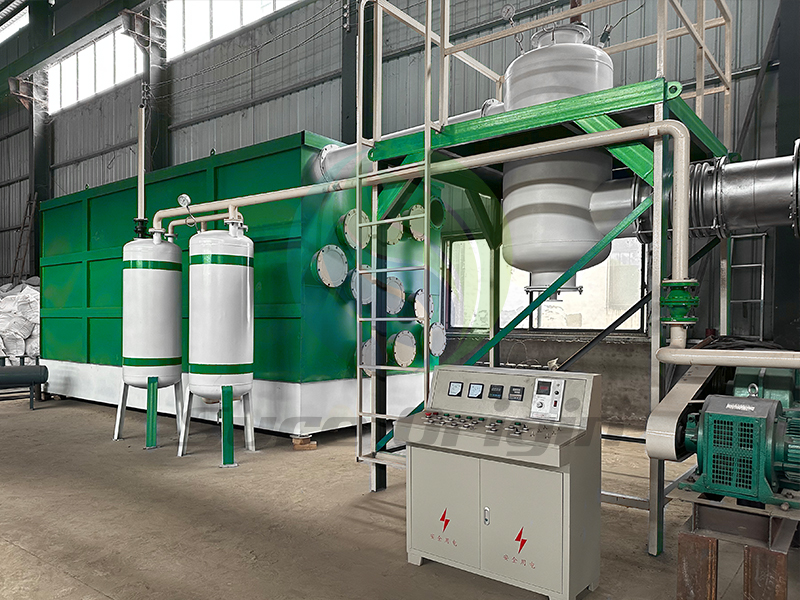

The frame of a portable biochar furnace mainly contains a wind shelter, mobile carbonization reactor, spray tower, electric control cabinet, and output system. Sure-Origin offers flexible system configurations. We will suggest the most suitable mobile charcoal making system according to customers’ need.
Why Choose Sure-Origin Portable Biochar Maker?
Compared with Sure-Origin continuous type, this containerized charcoal making machine has the following unique advantages.
1. The whole structure of the equipment has a compact and modular design. And it occupies a small area.
2. The overall size of the equipment has been strictly calculated, which is convenient for transportation and hoisting. A high cabinet can hold the main components. Save cost on shipping.
3. The inner and outer double-layer cylinders are adopted. And the materials don’t touch the flue gas. The improved heating efficiency is more than doubled.
4. The air heat exchanger is used to improve thermal efficiency. And the energy-saving effect is remarkable.
5. This type is easy to install because of its modular design. Usually, it takes 3-5 days to finish the intallation. And installation cost is low.
