A large capacity radiator recycling machine is a specialized equipment designed to recycle and separate waste radiators from vehicles or air conditioning systems. Copper aluminum radiator recycling machine is a production line with belt conveyors, shredder, crusher, negative pressure baffle separator, magnetic separator, air separator and pulse dust collector, which is used for shredding and crushing scrap copper aluminum radiators into small pieces and then separate copper, aluminum and iron.
This type copper aluminum radiator recycling machine is applicable to process all types of scrap copper aluminum air conditioner radiators and car radiators, include the deformed ones.
Recycling Process

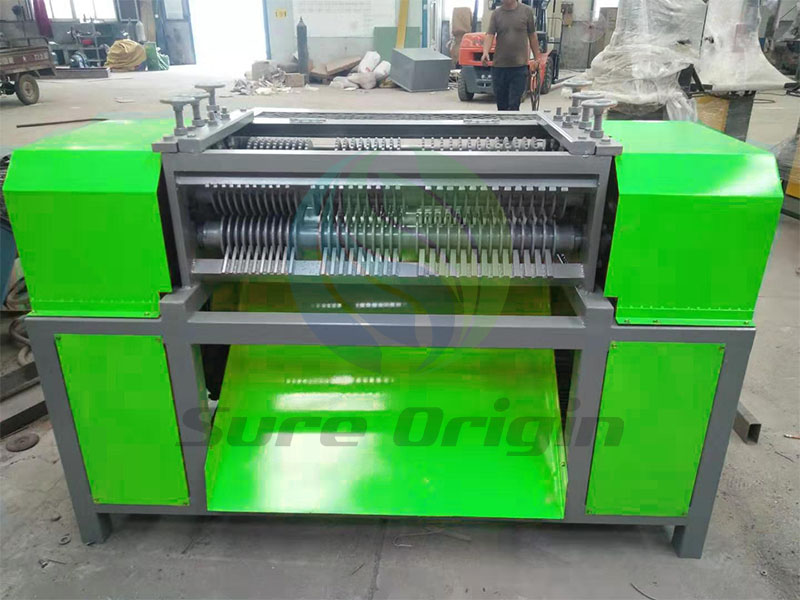

1) Shredding
Since scrap radiators are usually big size and some are in multiple layers, so the shredder is necessary for pre-cutting.
2) Crushing
Radiators pre-cutted by the shredder would be moved forward by the belt conveyor to crusher. Through the crushing process, radiators are crushed into small pieces, which copper, aluminum and iron are splited, but still mix together, which need to be separated in the further process.
3) Negative Pressure Baffle Separation
Negative pressure baffle separation is a pre-separation process to separate out most of the light aluminum before air separation. This way, with the negative pressure baffle separation, it could increase the processing capacity. Also when light aluminum are separated out, only very less heavy alumimum left, which is easier to adjust the air separator to separate copper and aluminum.
4) Air Separation
The left aluminum and copper would be separated by the air separator.
5) Magnetic Separation
Magnetic separation is used for separating out the iron from copper and aluminum. For different machine configurations, the magnetic separator could be set before or after air separator depends on the processing capacities and customer's request.
6) Dust Collection
Dust collection adopts automatic pulse dust collector which could make full dust removal of the crushing and separation process.
Features
1. High separation rate reach to 99.9%;
2. Processing capacities range from 800KG/H to 1500KG/H;
3. High automation, improve the working efficiency, and reduce the labour cost;
4. This type copper aluminum radiator recycling machine is applicable to process all types of scrap air conditioner radiators and car water tanks, include the deformed ones.
With the multi-layered and diverse Sure Origin product range, you will find the perfect
recycling solution for your business, customised to suit your requirements and needs.
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
