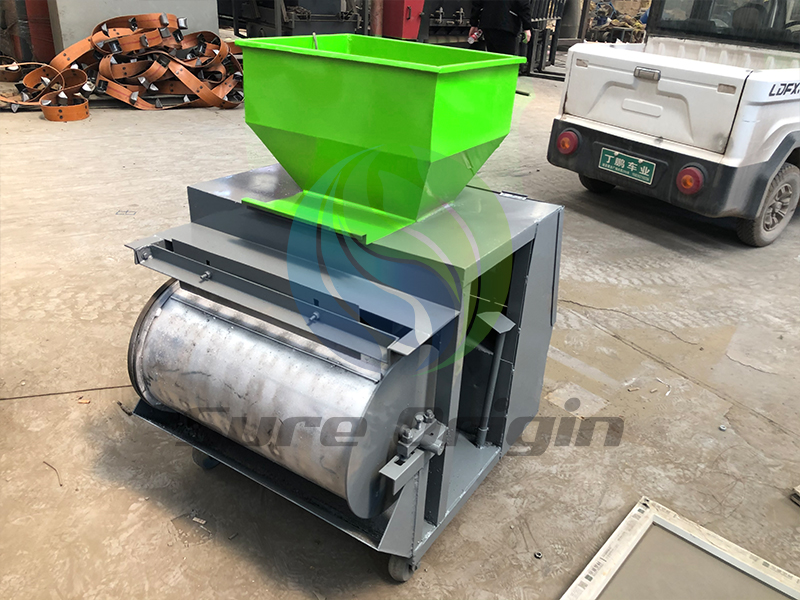

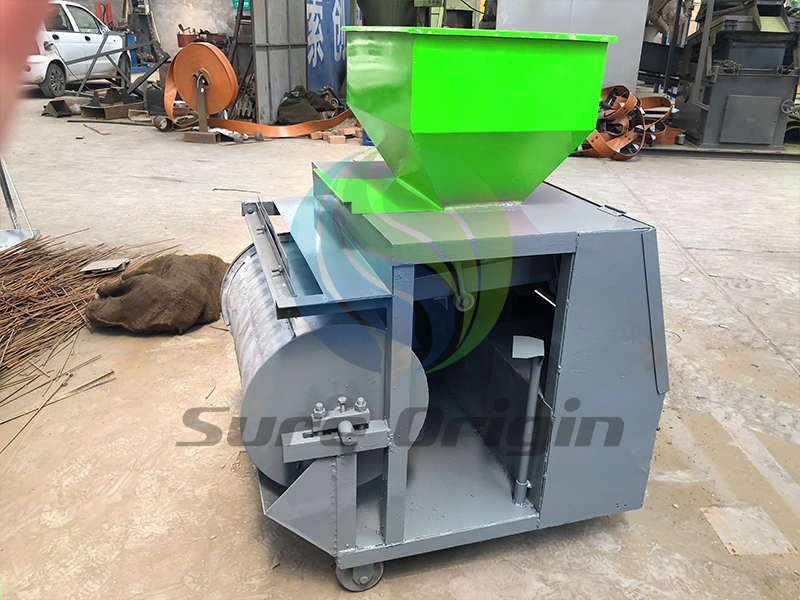

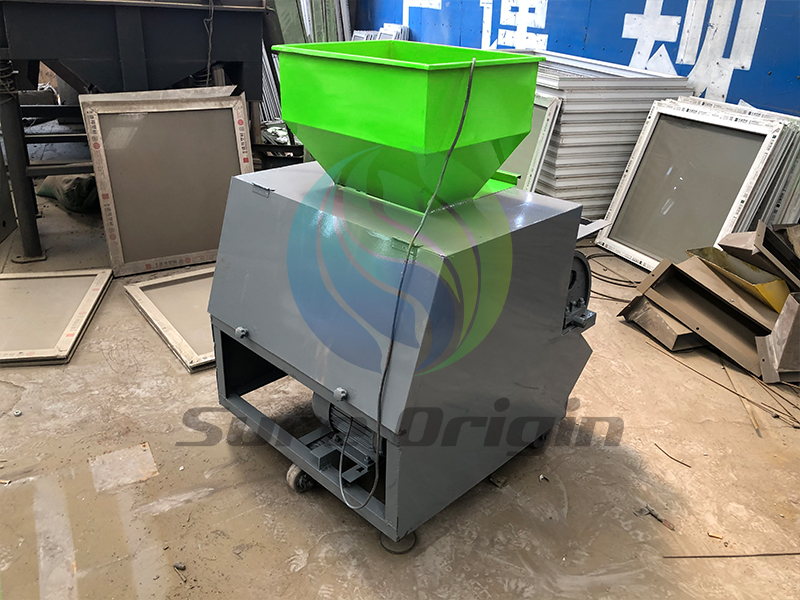

Drum Magnetic Separator

Drum magnetic separator is used for the separation of magnetic materials and non-magnetic materials in the process of waste recycling. The drum type magnetic separator is aimed at the separation of copper-iron, aluminum-iron, iron mixed powder granules, etc. It is suitable for iron removal in the resource recovery and dismantling industry.
Working Principle
Magnetic materials and non-magnetic materials pass through the semi-magnetic roller. Flip the magnetic material aside. Non-magnetic materials fall off naturally. Realize the separation of magnetic materials and non-magnetic materials, such as iron pins and aluminum pins. Iron can be held by magnets and thrown aside. Aluminum doesn't suck. Aluminum pins and aluminum scraps will fall off naturally when the materials that cannot be magnetized, and then the two materials will be separated.
Applicable Materials
Aluminum iron mixture. Mixture of copper and iron, mixture of plastic and iron, separation of various materials and iron. E.g. Separation of aluminum pins and iron pins, separation of plastic particles and iron pins, separation of wood and iron.
Advantages
1. Strong magnetic field and strong magnetic force
Using high-strength magnetic Ru-Fe-B material, strong magnetic force and strong iron removal ability
2. Accurate sorting
Strong magnetism, able to separate the iron filings and iron powder in the powder to achieve the purpose of purification
3. Not easy to damage
All laser blanking, one-piece molding, not easy to damage
4. Support customization
Magnetic separators with different magnetic properties can be customized according to site and material requirements, saving intermediate links and saving time and effort.
Material Particle Requirements
Fragments, particles or powders less than 8 cm, such as aluminum pins, aluminum chips, aluminum powder, aluminum shavings, copper rice, copper bran, garbage, plastic particles, wood chips, glass powder, quartz powder, silicon powder, single Iron removal for crystalline silicon, polysilicon, rare earth powder, spices, seasonings, food granules, medicinal materials, aluminum powder, aluminum rice, etc.
Sorting Efficiency
The daily processing capacity is about 10 to 20 tons. The specific output should be determined according to the actual situation of the material and the site. If it is plastic pellets, the daily output should be determined according to the actual situation for light materials.
Technical Parameters
Size ( Length * Width * Height ) 95cm * 72cm * 98cm
Weight 1000Kg
Voltage 0.75Kw (220V, 380V)
Capacity (Per Day) 2000kg ~ 5000kg
Complete recycling solutions, contact our experts today
