recycling of metal scraps, car shells, car motors, aluminum castings, cans, home appliances, etc.

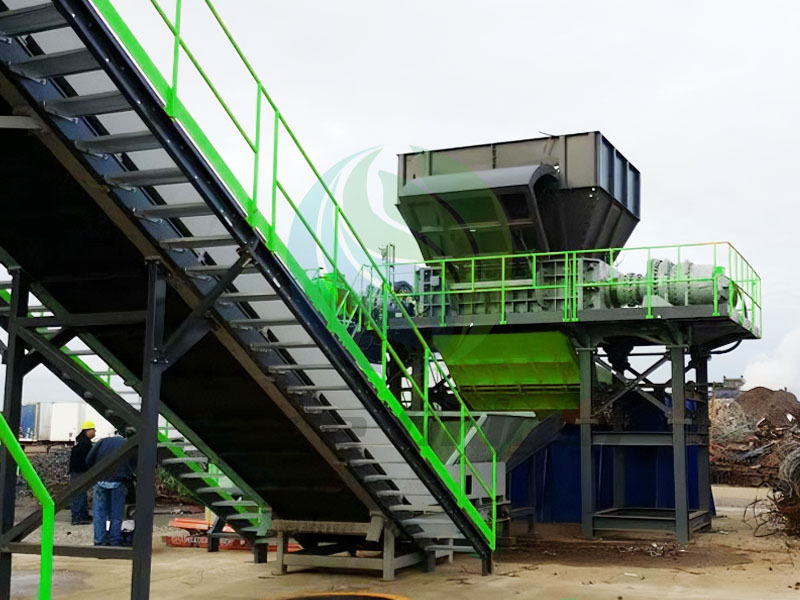

Sure-Origin Scrap metal recycling plant includes twin-shaft shredder, metal crusher, conveying equipment, separation equipment and dust removal system. The scrap metal recycling plant is mainly used for crushing, processing and recycling of metal scraps, car shells, car motors, aluminum castings, cans, waste home appliances, etc. After being processed, the bulk density of recycled material is suitable for direct transportation and returning to the furnace.
Metals can be classified as ferrous and non-ferrous. Ferrous metals are combinations of iron with carbon. Some common ferrous metals include carbon steel, alloy steel, wrought iron, and cast iron. On the other hand, non-ferrous metals include aluminum, copper, lead, zinc, and tin. Precious metals are non-ferrous.
The scrap metal recycling plant is used to process light scraps such as scrap car body, tinplate, household appliances, bicycles, empty cans and so on to make them become superior raw materials for steel making. Through the continuous crushing of the machine, removing the coating, increasing the specific gravity of the volume, preventing explosion when the furnace is put into operation, raising the melting rate under a certain shape, etc.
Recyling Process

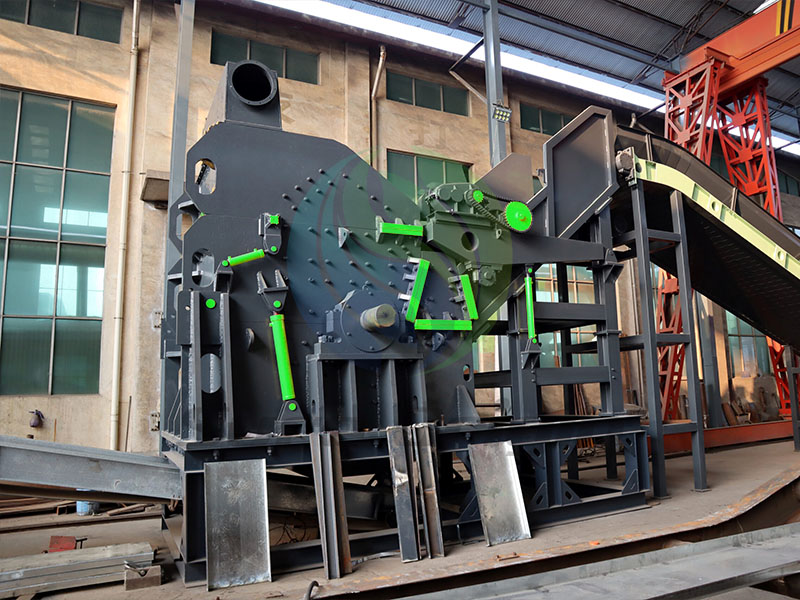

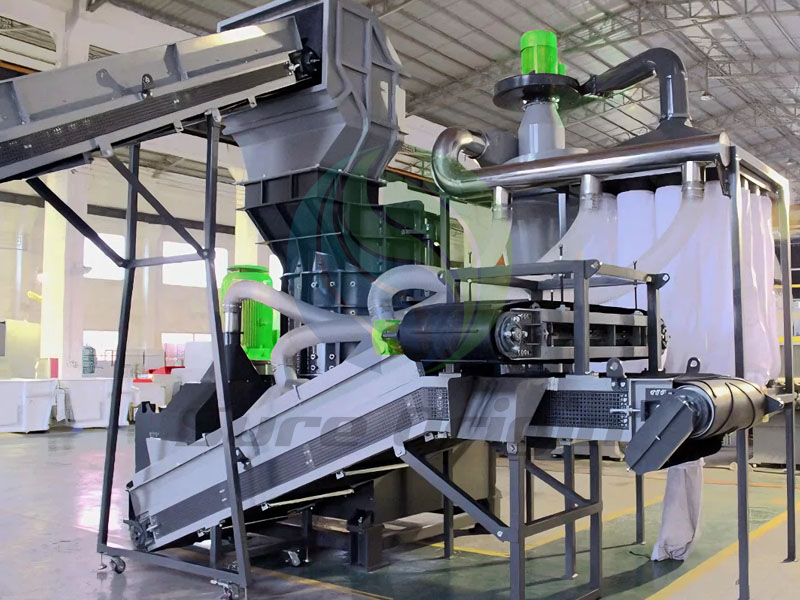

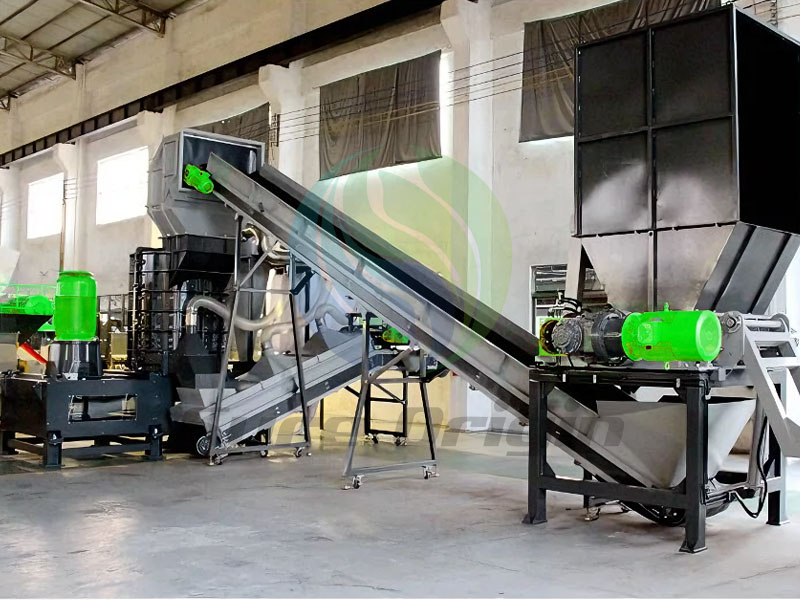

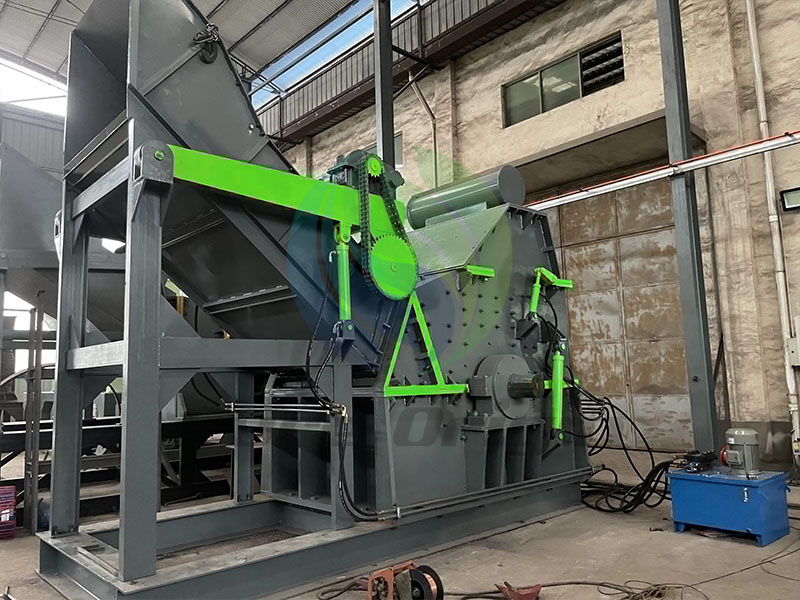

Sure-Origin scrap metal recycling plant adopts Double Shaft Shredder for the preliminary shredding, and hammer mill for further processing. After that a Dust collection system for removing the dust, a powerful magnetic separator is used for separating the ferrous metal, and an effective eddy current separator to remove the non-ferrous steel.
Features
1. Sure-Origin metal shredder is conducive to coarse crushing and increase production capacity; and its cutters are with long service life and are particularly convenient for maintenance.
2. Sure-Origin metal shredder is easy to disassemble and assemble, more wear-resistant, easy to maintain, and with advantages of low energy consumption, small and medium processing capacity, simple maintenance, and low cost.
3. Sure-Origin scrap metal crushing and separating equipment uses a hydraulic motor to replace the gearbox, which improves the torque and makes the shredding more stable; at the same time, it reduces the probability of mechanical damage.
The general scrap metal recycled includes:
1. Waste vehicle, motocycle, bicycle, etc.;
2. Steel plate not exceeding 10mm, rebar not exceeding 16mm and section steel, steel structure parts;
3. Other scrap steel, if packing blocks with density not more than 0.65 t/m3;
4. Household appliances excluding motors, compressors, shafts, etc.;
5. Empty cans, similiar domestic waste.
The below scraps are not suggest to be put into machine:
1. Dangerous parts: closed high pressure gas storage cyclinders, hydraulic cylinders, scrap that may cause explosions, fires tec sealed containers;
2. Heavy weight materials with more than 100kg, need pre treatment before into shredder;
3. Iron block more than 8kg;
4. Steel plate more than 10mm and more than 15kg;
5. Steel rails, steel tube, exceeding 3mm thickness, 250mm diameter, 500mm length;
6. Steel wire;
7. Steel shafts, converter, compressor.
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
CONTACT
Are you looking for a suitable recycling solution for your material? Please share a few more details with us and our experts will contact you right away!
