aluminum tubes, aluminum-plastic bottle caps and other aluminum plastic products separation

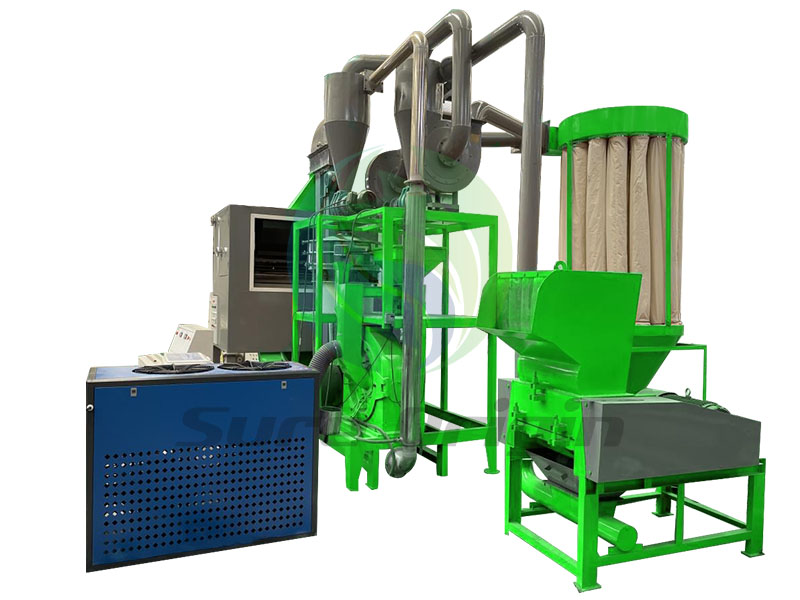

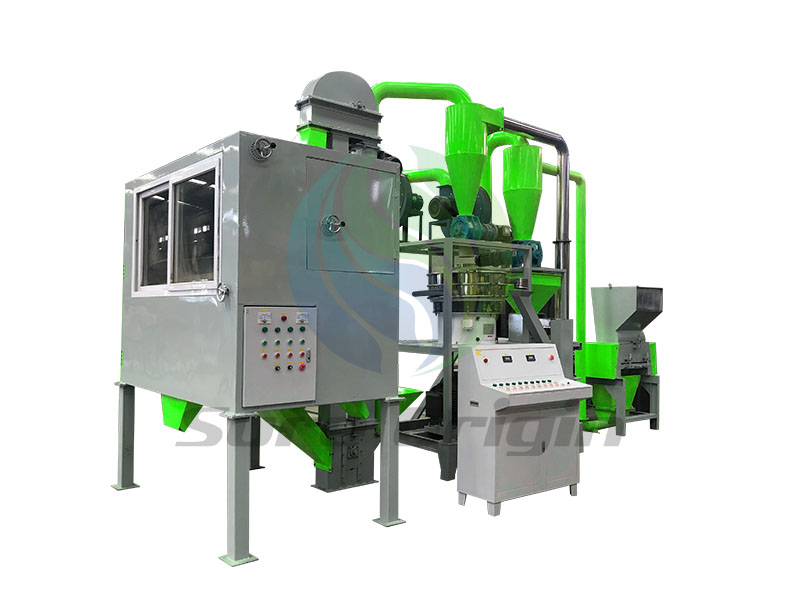

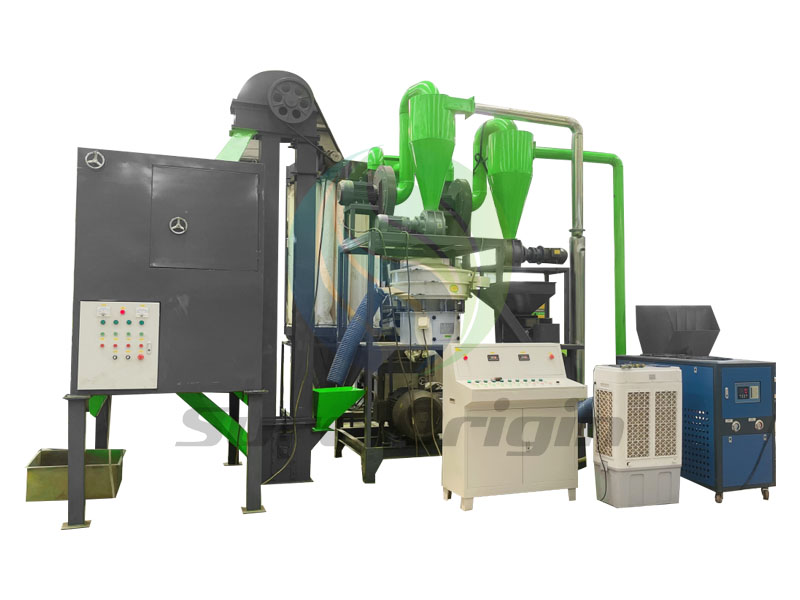

Aluminum plastic separation machine is a production line for crushing and grinding the aluminum and plastic composite materials to get aluminum separated from plastic. This production line is mainly composed of feeding conveyor, shredder or crusher, grinder, rotary vibrating screen, electrostatic separator, dust collector, etc. As this aluminum plastic separation machine is widely used for recycling scrap medicine blister packs, aluminum plastic composite panels, toothpaste tubes, aluminum plastic film packages, so it's also called as medicine blister packs recycling machine, aluminum plastic composite panel recycling machine, toothpaste tubes recycling machine, aluminum plastic film package recycling machine, etc.
Aluminum plastic recycling plant is mainly used to recycle various aluminum-plastic panels, waste plastic aluminum, toothpaste tubes, pharmaceutical blister packaging, pharmaceutical capsule plates, pharmaceutical blister foil, aluminum and plastic plates, various aluminum plates, waste aluminum plastic food bags, Milk bag, yogurt aluminum foil sealing cover, bottleneck aluminum foil cover, aseptic aluminum foil cover waste, circuit board, aluminum laminate, aluminum composite panel, aluminum composite tube, aluminum composite panel scrap and aluminum composite panel fragments, etc.
Recycling Process
1. Shredding / Crushing
Shredding and crushing is for the pretreatment of the raw materials to cut them into small pieces. For different types raw materials, it may have different requirements for using shredder or crusher. If the raw materials are big and thick aluminum plastic composite panels, and processing capacity is big, then better use the shredder instead of crusher. But for medical blister pack and aluminum plastic film, usually the crusher is enough.
2. Grinding
Materials after crushed, need to be grinded into smaller granules or powder for full separation.
3. Rotary Vibrating Screen
Materials after grinded may still have different sizes, in order to let them have a higher separation rate, the rotary vibrating screen is used to control the material size from the grinder. If the material size is bigger than the limit, then it will go back to grinder for grinding again. If the materials size is smaller than the limit, it will go forward to the electrostatic separator for separation.
4. Electrostatic Separation
As the grinded materials are already very fine powders, then no need air separator for primary separation, directly use the electrostatic separator is ok.
5. Dust Collection
As the aluminum plastic composite materials are required to be crushed and grined into powdery materials, it may have floating dust fly around, which requires the dust collector to remove the dust.
Features
1. High Efficiency: Aluminum plastics recycling machines are designed to have a high level of efficiency in separating and recovering aluminum and plastic components from waste materials.
2. Durable and Long-lasting: The machines are built with high-quality materials and components to ensure durability and long-lasting performance.
3. Easy to Use: The machines are typically designed to be user-friendly, with simple controls and clear instructions.
4. Low Maintenance: The machines are designed to require minimal maintenance, with easy-to-access components and parts that can be quickly and easily replaced.
5. Safe and Environmentally Friendly: The machines are designed with safety features to protect the operator, and they are typically environmentally friendly, with low emissions and minimal waste generation.
6. Customizable: Some models may offer customization options to suit specific requirements and applications.
7. Versatile: Aluminum plastics recycling machines can handle a wide range of aluminum-plastic composite waste materials, including flexible packaging, medical packaging, and other types of waste.
With the multi-layered and diverse Sure Origin product range, you will find the perfect
recycling solution for your business, customised to suit your requirements and needs.
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
CONTACT
Are you looking for a suitable recycling solution for your material? Please share a few more details with us and our experts will contact you right away!
