HOME / PLANTS/ Solar PV Panel Recycling Machine

Solar Panel Recycling Machine

Solar panel framing machine is a special equipment for dismantling solar PV module frames
A Solar PV Panel Recycling Machine is specifically designed to handle end-of-life photovoltaic modules, achieving the separation and recovery of aluminum frames, glass, copper, silicon powder, silver, and plastics.
Overview
A solar panel is a device that converts sunlight into electricity using the photovoltaic effect. Solar panels are generally made up of a junction box, an aluminium bezel, toughened glass, EVA and a circuit board. When solar panels need to be recycled or repaired, the bezel needs to be disassembled first, but this is a very troublesome thing. If the quantity is not much, you can dismantle it slowly by hand, but when a large quantity of solar panels need to be dismantled, you need the help of professional equipment.
Final Product

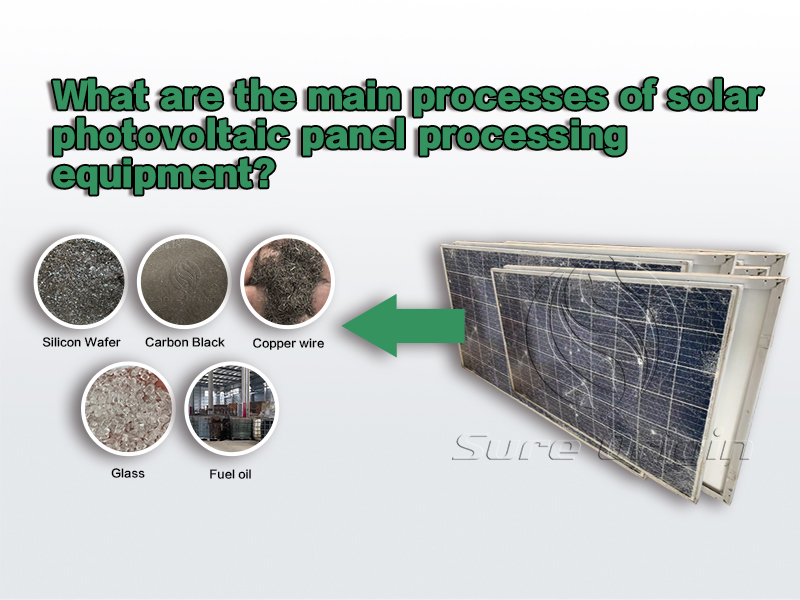

The Solar Panel Recycling Machine primarily employs a combination of physical, chemical, and thermal processing techniques to handle various types of photovoltaic panels, achieving the separation and recovery of aluminum frames, glass, metals, silicon powder and plastics.

Aluminum frame removal rate ≥ 99%, recycling purity ≥ 98%.

Glass removal rate 85-95%, recycling purity ≥ 90%.

Metal particle (copper) recovery rate ≥ 95%, recycling purity ≥ 95%.

Plastic powder recovery rate ≥ 95%, recycling purity ≥ 90%.

Silicon recovery rate 95%, appears in the form of a mixture of plastic powder, glass powder, etc., with a silicon content of about 45%.
Related Products

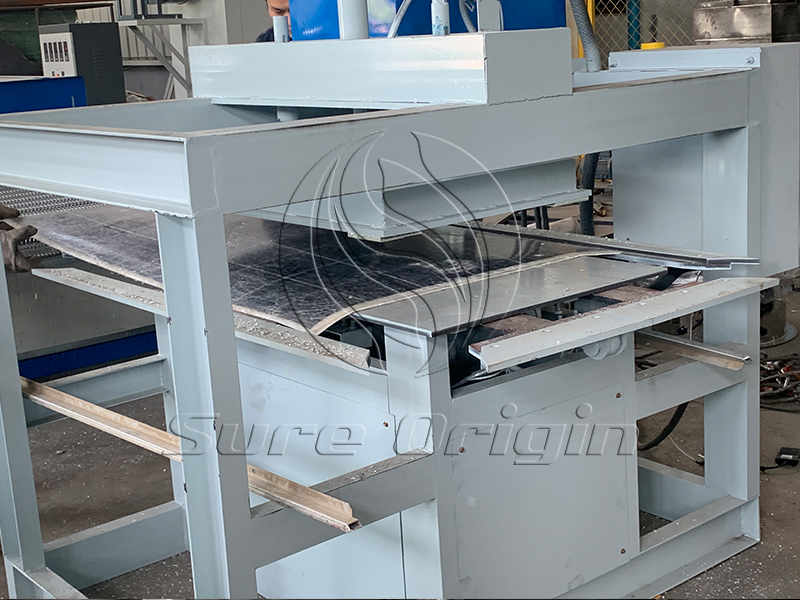

1.Frame Removal Machine


The fully automatic pv panel frame removal machine uses the hydraulic disassembly principle to efficiently and safely remove the aluminum frame of the photovoltaic panel for recycling. It can be used for photovoltaic panels of different sizes and models.

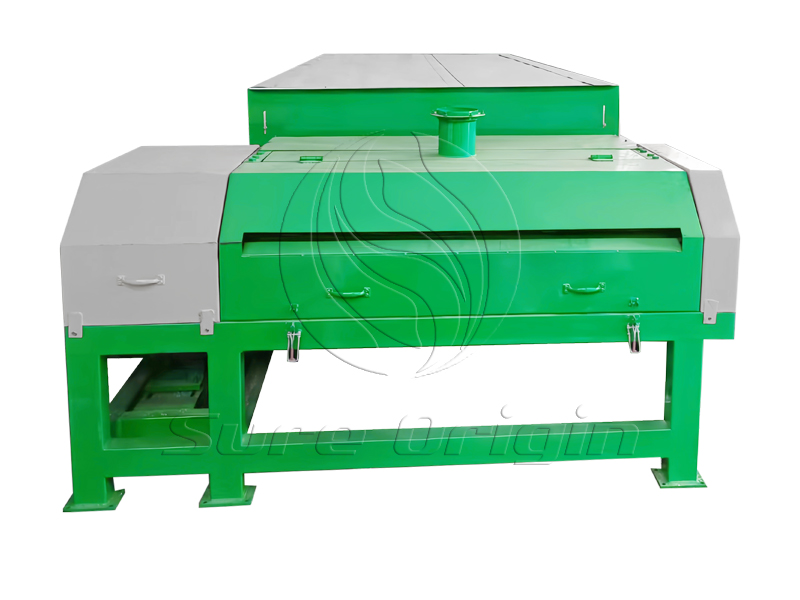

2.Glass Removal Machine


The photovoltaic panel glass removal machine is a device specially used to separate the glass layer of photovoltaic panels from other components (such as silicon circuit chips, packaging materials, backplanes, etc.).

3.Crushing and Sorting Production Line


The crushing and sorting production line mainly processes the back panel raw materials mainly composed of copper, silver and silicon powder after removing the aluminum frame and glass. After the main pre-treatment crushing, crushing and grinding, the plastic and metal are separated.

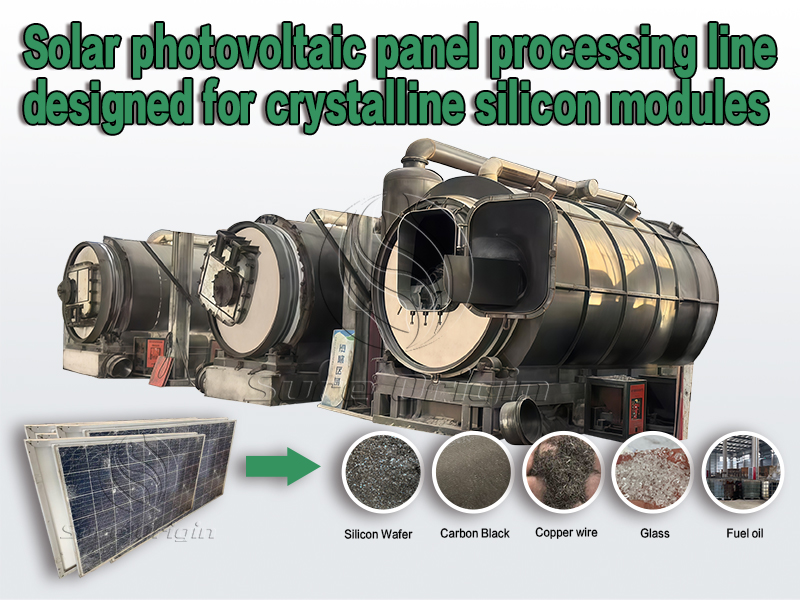

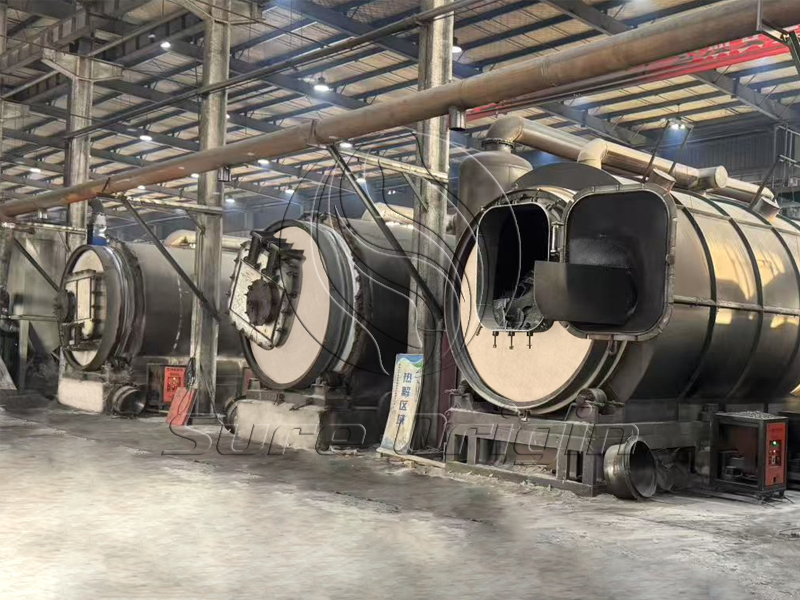

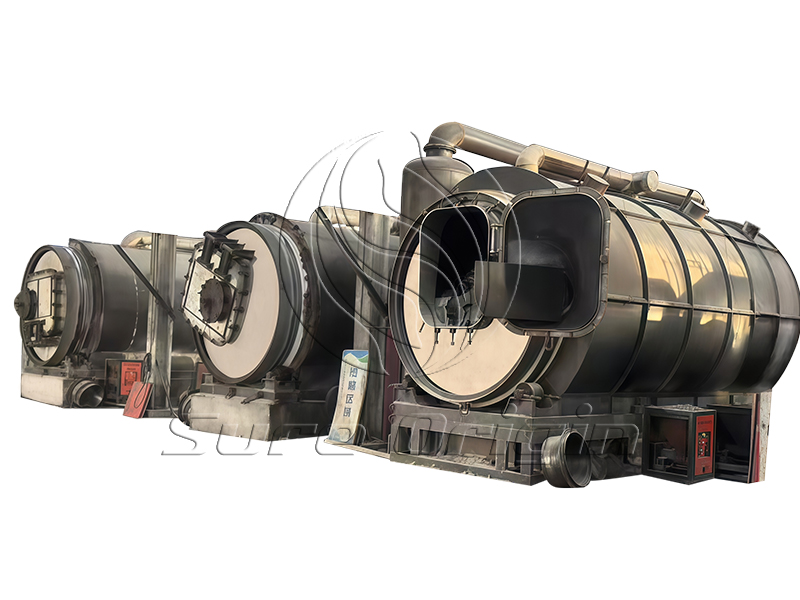

4.Pyrolysis Process Line


After removing the aluminum frame and glass, the remaining materials (mainly silicon, metals, cables, etc.) are directly fed into the pyrolysis treatment line. producing combustible gases, liquid oil, and solid residues (such as metal oxides, silicon powder, etc.).

5.Extraction of Precious Metal


After crushing or pyrolysis, the metal content mainly is copper, also will have some silver mixed in silicon. Will use precious refining machine to extraction silver, to get purity silver.

Product Advantages
1.High separation rate: frame remove rate≥99%, glass remove rate 85-95%, metal separation rate≥95%;
2.Reasonable layout, stable performance and low noise;
3.PLC control system can improve work efficiency and save labor cost.

4.The whole system adopts closed operation, negative pressure transfer. Dust can be collected effectively. There is no dust leakage. System is safety and environmental protection.

The Solar Panel Dismantler quickly separates the aluminium frames of solar panels, preserving the integrity of the aluminium material for recycling and reducing damage to glass and silicon materials. It improves dismantling efficiency, replaces traditional manual operations, and reduces labour costs and safety risks. It also helps to promote the sustainable development of the photovoltaic industry.

Complete recycling solutions, contact our experts today

SERVICE

Reliability throughout the lifetime of your unit!
Technical Advice and Design
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval. We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
