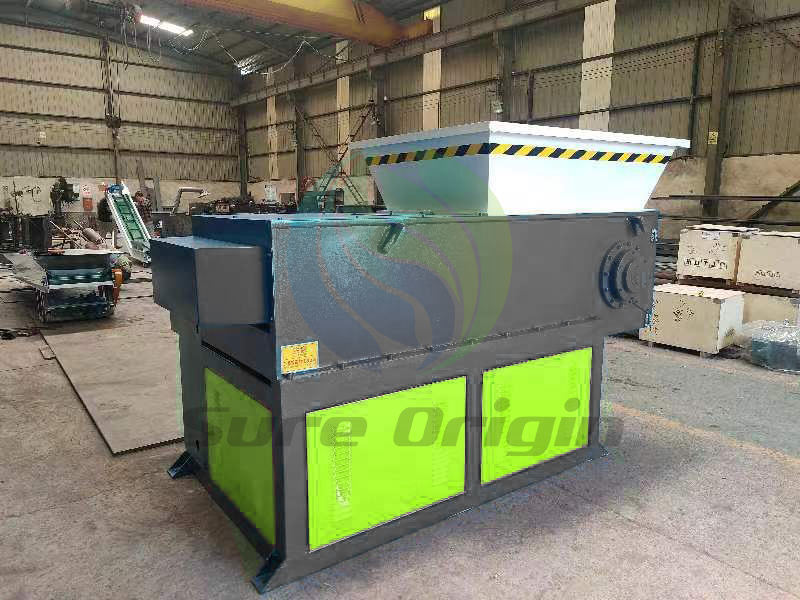

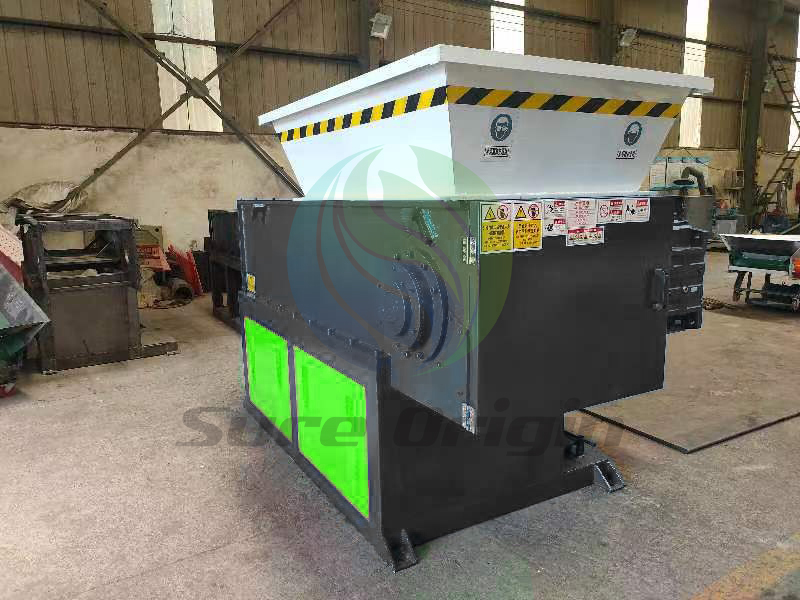

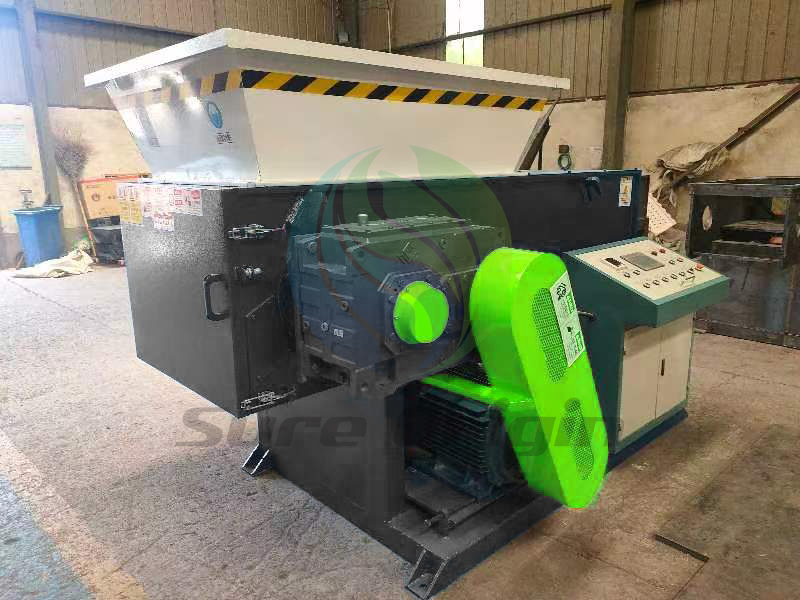

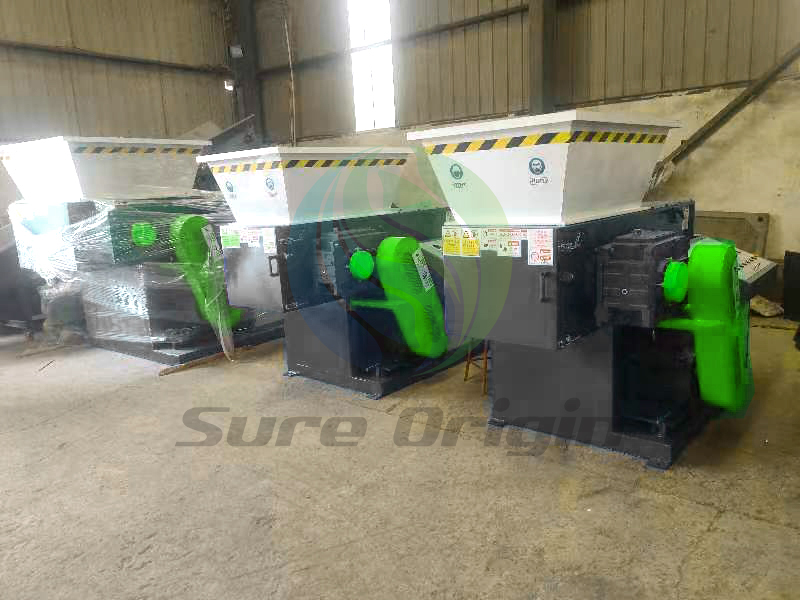

Single Shaft Shredder

Process wood, plastics, paper, soft metals, etc. Used in material waste recycling smaller than 1500mm.
Single shaft shredder is used in the small-to-medium material size reducing and waste recycling in various industries. Being the smallest shaft shredder in our product line, its throughput is from 300kg to 2000kg/hr. Single shaft shredders are suitable for processing: non-ferrous metals, copper cables, aluminum cables, power coils, plastic bins, containers, composite materials, wood, paper, cardboard, industrial packaging, tires, scraps, radiators with the presence of light ferrous parts and more. Features low speed, high torque and compact structure. In a harsh environment, shredder machines can maintain good stability and reliability. The screen can be customized according to customer needs. Depending on the industrial waste application you need to use your single-shaft shredder for, we can provide a custom-built, extended feed hopper to fit larger materials that need to be reduced to a smaller size.
Applications
Plastic: Plastic lump, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, raffia, twine
Wood: Wood pallet, wooden box, timber residues
Paper Product: Waste paper and confidential documents
Scrap Metal: circuit board, aluminum casing, copper, radiator, wire, cable, WEEE
Mixed Waste: MSW(municipal solid waste) and RDF (refuse-dervied fuel) production
Features
1. Rotor knife adopts DC53 steel and counter knife adopts D2 steel(58 HRC), with high hardness and wear-resistance.
2. Mechanical protection and safety, in accordance with European CE standards.
3. Engineered with bearing outcasted, so blades can be changed quickly and efficiently.
4. PLC automatically re-orients rotor direction when motor overload & material jam.
5. IP54 control cabinet adopts trusted brands such as Siemens and Schneider.
6. Easy access to shredder machines rotor and screen, and quick to change them.
7. Rotor knives can be used 2 times before being replaced, reducing operating costs.
8. Extra Pusher Ram is optional for hollow and gigantic materials.
9. Several models of the screen are available and easily interchangeable.
10. Guide rail and pusher can be replaced and are adjustable to maintain a smooth push and retract as well as to keep the crushing chamber fully closed.
Complete recycling solutions, contact our experts today

SERVICE

Reliability throughout the lifetime of your unit!
Technical Advice and Design
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval. We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
