Drying Coconut Shell & Crushing Coconut Shell
If coconut shell has large moisture and size, it needs to be processed by a dryer and crusher. Processed coconut shell can be carbonized faster and better. Finally, customers will get a high-quality coconut shell charcoal to do business with this machine.

Feeding Coconut Shells
Sure-Origin provides three kinds of feeding methods, including manual feeding method, automatic screw feeder and hydraulic feeder. We take an automatic feeder as an example. The coconut shell is delivered into coconut shell charcoal making reactor automatically by conveyor.

Carbonizing Coconut Shell into Charcoal
After preheating, with temperature increasing, the reaction of coconut shell pyrolysis starts. When temperature reaches 300-600 degrees, coconut charcoals are made. Then biogas, tar and wood vinegar are generated.

Discharging Carbonized Coconut Shells
The final coconut shell charcoal will be discharged at the end of the reactor by a water cooling discharger. The temperature of the final charcoal is about 30 degrees. Accordingly, it is safe to move and store.

Multiple Chooses on Models and Components
Sure-Origin offers seven models for customers to select. They are suitable for the small-scale and large-scale coconut shell charcoal making business. Moreover, customers also can choose these machines according to the installment, occupied land, and automation level. In addition, Sure-Origin has many optional chooses on feeder, discharger, PLC, auxiliary equipment, and dedusting system. Send your requirement and we will make a suitable design for you.

Less Fuel Consumption
There are many devices and systems which can help customers to save energy costs. They are motor, biogas recycling system, hot air recycling system, water circulatory system. Some parts can have less energy consumption. The other systems can be used to recycle some energy. Finally, customers can save a large of energy cost if customers choose Sure-Origin coconut shell charcoal making line.

The Newest Custom One-stop Service
Sure-Origin engineers have rich experiences in designing, manufacturing, installing and providing solutions to customers. We provide custom one-stop projects (EPC) to customers. Moreover, we will help customers to design the most suitable and implementable drawings. Just leave your requirement for wood pyrolysis machine now.

Pollution-free Coconut Shell Charcoal Line
Sure-Origin coconut shell charcoal production line has dedusting system. It can purify the final exhuast gas. Besides, the water in this line won’t be polluted. And it is in recycling process. And the final products are collected into different containers. Accordingly, the coconut shell charcoal production site is clean and efficient.

Sure-Origin provides two kinds of coconut husk charcoal making machines, including small and continuous models. They have different features.

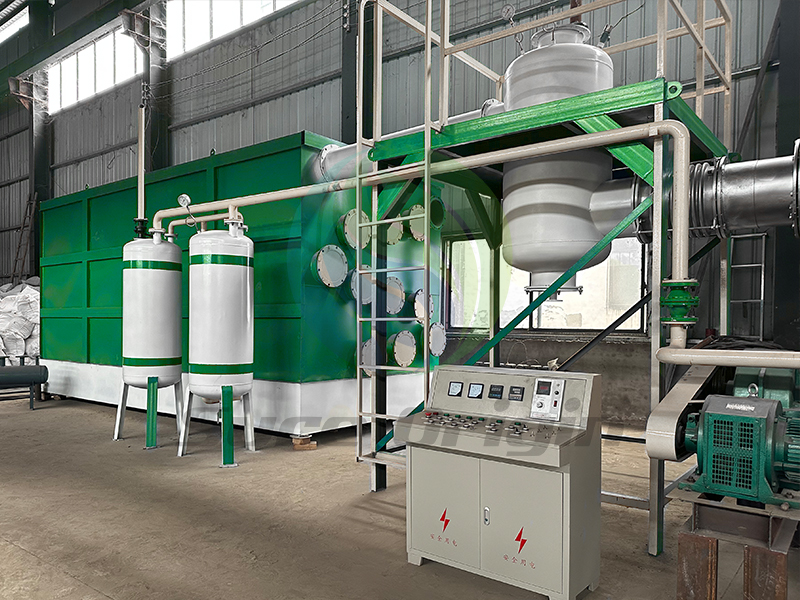

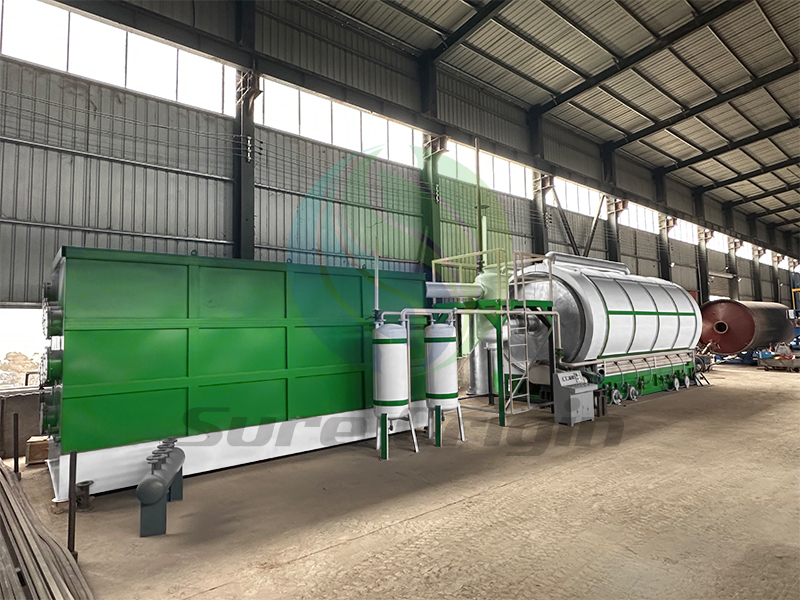

Batch coconut shell charcoal making machines can carbonize 12-40 cubic meters of coconut shell. They have small sizes. And they are designed into containers. So they are easy to deliver and install for customers.

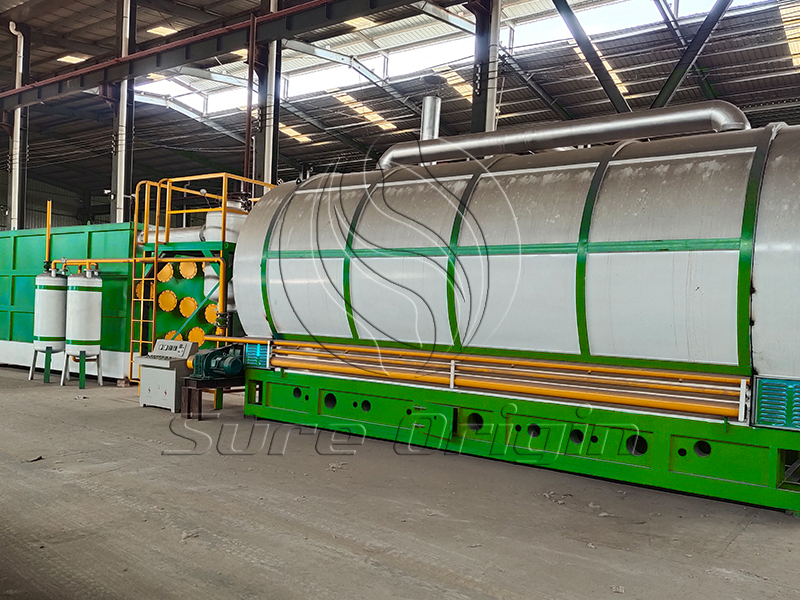

Continuous coconut shell charcoal making machines can pyrolyze 0.3-5 tons of coconut shell per hour. They can make large coconut shell fiber charcoal in a short time. Moreover, it can continuously work for 24 hours.
We have seven models for you to choose from. Their capacity depends on the feeding volume of raw materials you are going to dispose of. TMT-J12, TMT-J18 and TMT-J40 coconut shell charcoal machine are suitable for small-sized coconut shell charcoal making plants. TMT-30 and TMT-50 are appropriate for the large-sized carbonizing plant. See their parameters in the following tables.

Model	TMT-J12	TMT-J18	TMT-J40	TMT-05 Pro (skid-mounted)	TMT-10	TMT-30	TMT-50
Input Capacity	12m³/batch	18m³/batch	40m³/batch	0.3-0.5m³/h	2-4m³/h	7-9m³/h	10-15m³/h
Reactor Size	φ1900mm * L4500mm	φ1900mm * L6600mm	φ2800mm * L7100mm	φ830mm * L5500mm	φ1300mm * L14051mm	φ1700mm * L14180mm	φ2000mm * L14260mm
Land for Equipment (L*W*H, Standard Configuration)	9m*6m*6m	12m*6m*7m	15m*18m*7m	10m*8m*3.9m	29m*15m*5m	30m*15m*8m	35m*18m*9m
Weight (Standard Configuration)	18T	22T	34T	15T	35T	35T	49T
Energy Consumption (Standard Configuration)	11kw/h	13.5kw/h	25kw/h	31kw/h	34.7kw/h	61.5kw/h	116kw/h
Working Method	Batch			Fully continuous
Feeding Requirement	/			Size: ≤20mm; moisture: ≤15%; strong liquidity
Structure	Horizontal rotation			Double barrel single hearth	Double barrel double hearth
Speed	0-2RPM			1-9RPM
Control Method	Control by buttons			Automatic control
Reactor Material	Q245R				Q245+310S
Pressure	Micro negative pressure
Heating Material	Diesel, natural gas, heavy oil, biomass, etc.
Heating Method	Direct heating
Noise (dB)	≤80
Condenser	Circulating water cooling
Rotation Method	External gear rotation

Customers have multiple choices for the fuel, like coal, wood, natural gas, LPG, diesel oil, etc. Choose the best favorable one based on your actual situation. Before purchasing a coconut shell charcoal making machine, give us your detailed information. Then we can design a suitable heating chamber for you according to the fuel. See a part of energy consumption from the following table.

Besides the standard coconut shell charcoal carbonizing line, Sure-Origin provides three kinds of auxiliary equipment. They are coconut shell dryer, coconut shell crusher and coconut shell charcoal briquettes machines. A coconut shell dryer is used to remove the moisture of coconut shell. It has an energy-saving design. It can use recycled hot air to dry coconut shell after preheating. A coconut shell crusher is used to cut coconut shell into small pieces. Sure-Origin coconut shell charcoal briquettes machines can make different shapes of coconut shell charcoal briquettes, like rod, square, stick, etc. Tell Sure-Origin your need.

Coconut Shell Charcoal
Coconut shell charcoal is used to purify the soil in agriculture.
It is a degradable product which is friendly to our environment.
It can be BBQ/shisha charcoal in daily life.

Wood Vinegar
It is used to as the materials of anti-insect fungicide.
It can neutralize nitrogen and sulfur compounds to be used as a deodorant.
It is used as a soil conditioner.

Biogas
It is the fuel used in the ceramic/iron/boiler/cement factory.
It is used as heating the greenhouse agriculture or dryer.
It is used to get electricity from a generator.

Tar
It is a material used in the shipbuilding and paint industry.
It is used for plant nutrition to regulate auxin or insecticide.
Tar is used as material in chemicals and medicine.

There is a tested coconut shells charcoal report issued by a Chinese authoritative organization. This sample is selected from China. If the sample comes from different areas and countries, the tested reports will have differences. This final result is just for your reference.

Sample	Coconut Shell
Total Water (Mt%/)	9.1
Analysis Water (Mad%)	4.19
Ash Content on Dry Basis (Ad%)	0.18
Dry Base Volatile Matter (Vd%)	6.95
Dry Base Fixed Carbon (Fcad%)	88.68
Sulfur Content on Dry Basis (St.d%)	0.09
Coking Characteristics (1-8CRC)	/
New National Standard Calorimeter Dry Basis High Calorific Value (kcal/kg)	7277
The New National Standard Calorimeter Method Receives the Base Low Calorific Value ( kcal/kg)	6724
