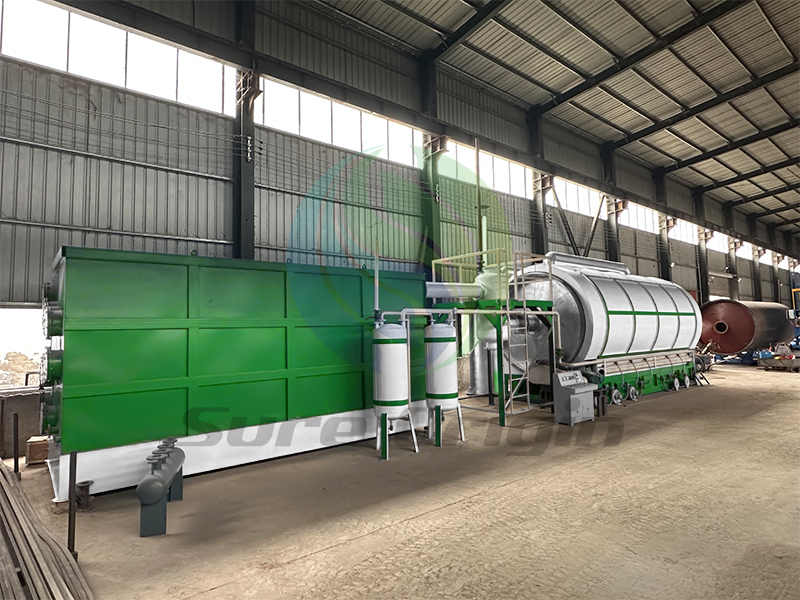

Mini Skid-mounted Pyrolysis Plant

0.5 ton - 3 ton
Mini skid-mounted pyrolysis plant can process 0.5-3 tons of waste into oil. With small land field and simple operation, this machine is an efficient way to process several kinds of waste, such as waste tire, plastic and oil sludge. Sure-Origin offers several configurations and layouts to meet customers’ requirements, including feeding system, discharging system, and dedusting system. Just leave your demand to Sure-Origin.
Materials Available
There are four kinds of raw materials that can be processed by waste pyrolysis equipment, including tyre, plastic, oil sludge, and rubber powder. These non-degradable materials pollute the environment heavily. Read the following table to know how many tons can be processed by Sure-Origin mini pyrolysis machine.
Material Plastic Rubber Powder Tyre Oil Sludge
Feeding Capacity 0.5-1T/D 1-3T/D 1-3T/D 3T/D

Final Products
When different raw materials is applied to this mobile pyrolysis line, the final products are different, especially, pyrolysis oil.

1. Final products of tyre pyrolysis: pyrolysis oil, carbon black, syn-gas, and steel wire;
2. Final products of rubber/plastic pyrolysis: pyrolysis oil, carbon black, and syn-gas;
3. Final products of oil sludge pyrolysis: pyrolysis oil, sand, and syngas.
Components

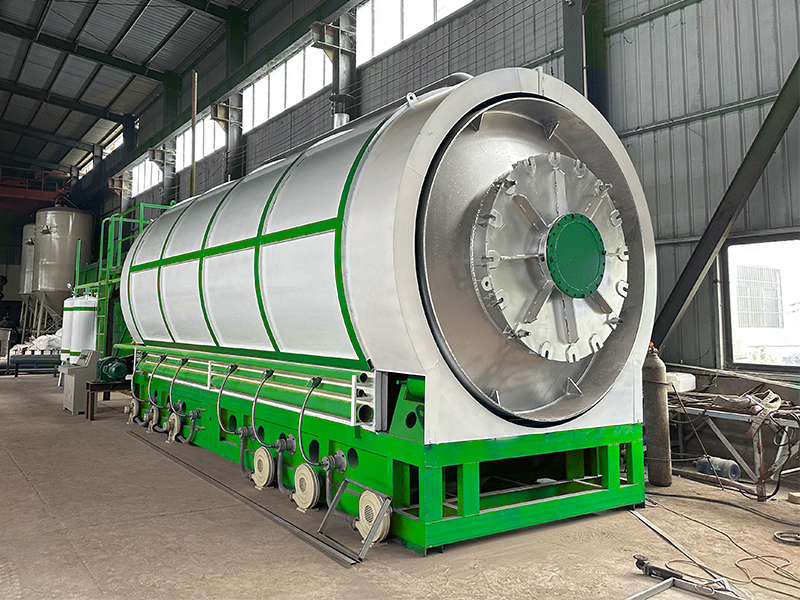

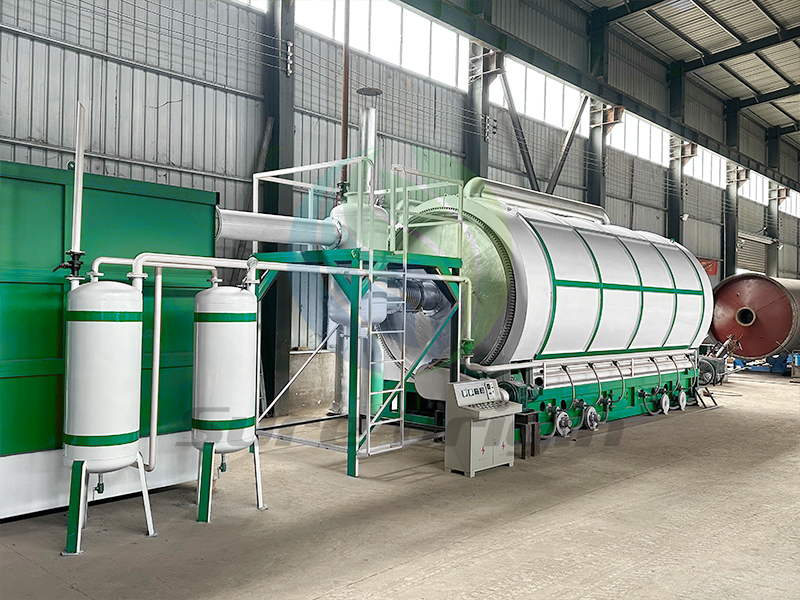

Sure-Origin skid-mounted equipment is used to process small quantities of waste. For standard skid-mounted pyrolysis lines, it is equipped with a main containerized furnace, a three-in-one integrated condenser and a de-dusting system. For this production line, manual feeding and manual discharging are required for investors. Besides, we provide customized production lines, such as automatic feeding system, automatic discharging system, customized mini skid-mounted pyrolysis furnace, etc. If you need these services, please let us know as soon as possible.
Working Process
The working process of a mini skid-mounted pyrolysis machine includes a feeding process, mini pyrolysis, discharging process and de-dusting process. Instructions for operation are included in the delivery list. This guide will guide customers to operate this line. Or customers can also consult us online. Our technicians are always ready to answer your questions.

1. Feeding
Through manual labor force or automatic screw feeder, waste materials are sent into the waste pyrolysis reactor.

2. Preheating and Pyrolysis
At the first, use fuel to heat the reactor. After about 1 hour, the recycled combustible gas and oil are generated.

3. Discharging
When the pyrolysis process is finished, workers collect waste pyrolysis oil and carbon black by manual labor force.

This line could process one furnace of raw materials. After the finish of pyrolysis, this line needs some time to cool down.
Advantages
Small Investment and Small Capacity
This model requires a small investment and a small processing capacity. It is more suitable for the following customers. First, customers dealing with small quantities of raw materials. Second, customers with limited budgets. Third, customers who have just engaged in this field.

Containerized Design and Small Occupied Land
Sure-Origin mini skid-mounted pyrolysis machine has containerized design. It occupies a small land area. When customers choose this line, no infrastructure work is required here. Besides, the small compact design could help customers to reduce packing and shipping costs.

Easy Operation and Installation
Sure-Origin tyre recycling pyrolysis equipment is a box structure. When shipping, 90% of the installation work is done. Shipping and installing it is simple. Workers simply assemble it according to our manual. The overall structure is compact and lightweight.

Safety Measure of Sure-Origin Mobile Pyrolysis Plant
Considering operation security, there are several devices to monitor the data, including an electric thermocouple, pressure gauge, thermometer, alarming device, gas anti-flame back device, automatic pressure-relieve valve, etc. So, the operation is safe.
Technical Parameters
For standard mini skid-mounted pyrolysis equipment, we offer one model – TMF-3. In addition, we can also make customized tyre pyrolysis solutions according to the different processing capacity of customers. Please see the detailed parameters in the table below.
Model TMF-3
Capacity 1-3t/d
Working Process Batch
Reactor Size φ1400*4900mm
Reactor Material Q245R
Drive System 350 reducer+4kw drive motor
Land (L*W*H) 18m*4.2m*6m
Power 16.65kw
Burner 2*200,000 kcal
Total Weight of Shipped Materials About 18t
Number of Containers 1*40HQ
Noise (dB) ≤60
Heating Materials Fuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc.
Condensing System Vertical Condenser
φ426*3000
Single piece condensing area
7.58m2
3-in-1 Condenser
3000*2200*2250
Condensing area
17.51m2

Benefits Analysis
The table below shows the benefit of analysis of TMF-3 Sure-Origin tyre to fuel recycling equipment. All data are based on the Chinese market. As can be seen from the table below, the profitability is considerable. If you want a local project benefit analysis, please leave a message to tell us the project details and the local market situation.
Daily Running Cost
Item cost per unit(usd) Total
Material(Ton): 1.5 ton waste tyres 0 0 USD
Fuel: 60 Kg/h tire fuel 0 0 USD
Power: 15 kw/h 0.2 54 USD
Labors: 1 worker 25 25 USD
Depreciation 25 USD
Tax Free from tax for Environmental Protection Project USD
Other Expenses 21 USD
Total Cost: 125 USD
Daily Gross Profit
GOV financial subsidy
Tyre Oil 0.67 ton/day 417 279.39 USD
Steel 0.18 ton/day 179 32.22 USD
Carbon Black 0.45 ton/day 50 22.5 USD
Total Gross Profit 334.11 USD
Pure Profit
Daily Profit 209.11 USD
Monthly(25 working days) 5227.75 USD
Annual(10 Months) 52277.5 USD
