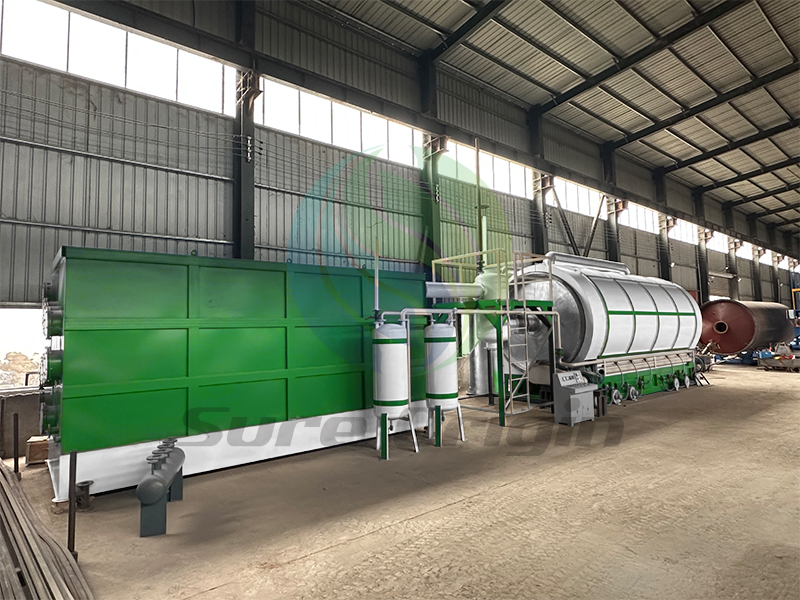

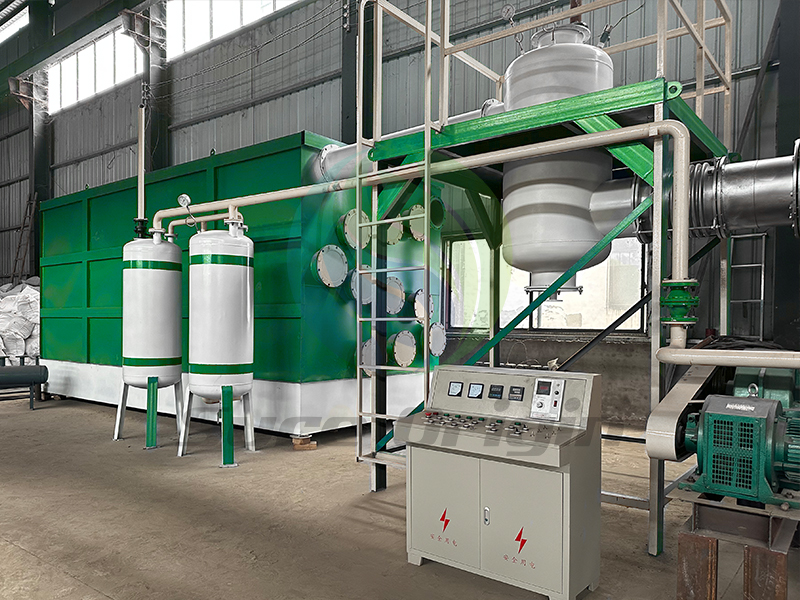

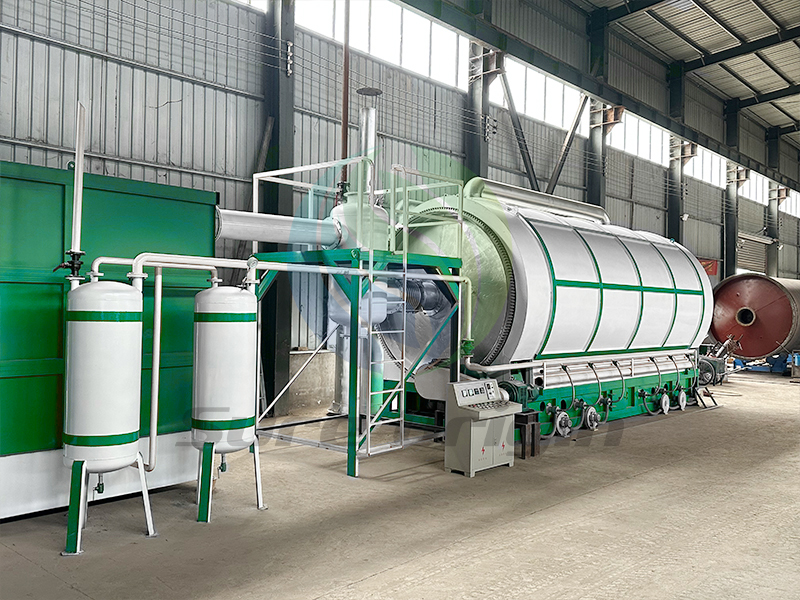

Plastic Pyrolysis Plant

Plastic pyrolysis plant is used to process various waste plastics. Nowadays, waste plastics are increasingly harmful to the environment. Many customers are looking for a suitable solution to dispose of waste plastics. TM-Machine provides waste plastic recycling solutions and plastic pyrolysis equipment. TM-Machine pyrolysis plants have many types, including modular skid-mounted plants, tranditional batch pyrolysis plants, and large-capacity continuous pyrolysis plants. If you are interested in TM-Machine equipment, please contact TM-Machine as soon as possible.

[email protected]

Raw Materials

There are many types of plastics that can be recycled by TM-Machine pyrolysis equipment, including woven bags, acrylic, packaging bags, disposable cups, freezer food bags, cotton swabs, and so on.
Besides, the plastic can also be divided into HDPE, LDPE, PP, PS, and others.
Note: Similar chlorine and oxygen-containing plastics such as PVC and PET are not recommended for disposal.

Working Process

Materials Reprocessing
Determine that the size and moisture of the plastic meet the feeding requirements. Customers could pack the plastic into blocks. This step can improve the efficiency of the pyrolysis process and the quality of the plastic pyrolysis oil. This preprocessing step is configured according to the customer’s needs.

Plastic Pyrolysis
Transfer the plastic to the main plastic pyrolysis furnace. Preheat main furnace. After the temperature reaches 280 degrees, the chemical and physical reactions of plastic pyrolysis begins. Pyrolysis oil and carbon black are continuously produced.

Syn-gas Recycling
The recoverable syn-gas in the main pyrolysis furnace will go through a water seal and condensing system. The purified combustible gas can be used to heat the main combustion chamber. This step will help customers to save fuel. The syn-gas could be collected separately for other purposes.

De-dusting System
The waste smoke in the main plastic pyrolysis reactor reaches the EU emission standard after being treated by the atomizing tower and the condenser.

Advantages

Plastic Pyrolysis Technology
TM-Machine waste plastic treatment adopts gas-phase catalytic pyrolysis technology. This technology effectively solves the problem of clogging pipelines with wax oil. It ensures that the equipment can run continuously and stably. At the same time, it can also help to improve the oil yield of plastic cracking oil.

IOT Monitoring Technology
TM-Machine plastic pyrolysis equipment can be equipped with IOT technology. It can realize intelligent data remote transmission and control. At the same time, the mobile terminal of the device realizes timely online monitoring of the Internet of Things. This system is convenient for customers to control the overall operation.

Integrated Control System
TM-Machine plastic pyrolysis equipment has a high degree of automation control. The whole set of equipment can adopt PLC (standard TML-30) and DCS remote control systems. They have data storage and download capabilities. High control efficiency will save manpower and improve the working environment.

Full-life Project Cycle Design
TM-Machine provides supporting solutions for the entire project life cycle. TM-Machine provides customers with tire oil distillation, purification technology, decolorization & deodorization technology and other pyrolysis technologies. In this way, TM-Machine helps customers increase the value of end products. It also improves overall profitability by extending the industrial chain.

Eco-friendly Design
This equipment is environmentally friendly and discharges up to standard. The combustion exhaust gas is treated by environmental protection facilities to meet the emission standards. The carbon black is discharged by the water-cooling system to reduce dust pollution. This meets the customers’ local environmental policy requirements.

Product Value-added Services
Layout drawing design, installation drawing design and other drawing files are provided free of charge for customers according to customers’ site layout. At the same time, TM-Machine provides system software upgrade services free of charge. This service could help customers save additional investment, including time cost, management cost, and technical cost.

Technical Parameters

TM-Machine offers 7 models of plastic pyrolysis equipment. These 7 types have different processing capacities, feeding methods, discharging methods and de-dusting systems. In addition, plastic pyrolysis is prone to clogging the system with wax oil. So, customers could choose the optional system – catalytic tower system according to their own situation. Please see device details.

Parameter of Plastic Pyrolysis Machine

Model	TMF-5	TMF-10	TMF-12	TMF-15	TMF-20	TMF-30	TMF-50
Capacity	5 t/d	10 t/d	12t/d	15t/d	20 t/d	30 t/d	50t/d
Working Process	Batch/ Semi continuous	Batch/ Semi continuous	Batch/ Semi continuous	Batch/ Semi continuous	continuous	continuous	continuous
Reactor Size	Φ 2200 * 6600 mm	Φ 2600 * 7700 mm	Φ 2600 * 8800 mm	Φ 2800 * 8800 mm	Φ 1200 * 9450 mm	Φ 1500 * 13000 mm	Φ 2000 * 15200 mm
Reactor Material	Q245R/Q345R/304/316L/310S				310S	310S	310S
Drive System	350 reducer + 4kw drive motor	500 reducer + 5.5kw drive motor	500 reducer + 7.5kw drive motor	500 reducer + 11kw drive motor	ZSY160 reducer + 5.5kw drive motor	ZSY180 reducer + 7.5kw drive motor	ZSY200 reducer + 15kw drive motor
Land ( L * W * H )	30m * 12m * 8m	32m * 15m * 8m	34m * 15m * 8m	34m * 15m * 8m	45m * 20m * 10m	50m * 25m * 10m	55m * 30m * 10m
Burner	2 * 250,000 kcal	4 * 250,000 kcal	3 * 350,000 kcal	4 * 350,000 kcal	4 * 250,000 kcal	4 * 350,000 kcal	3 * 600,000 kcal
Noise (dB)	≤60	≤60	≤60	≤60	≤60	≤60	≤60
Heating Materials	Fuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc.
