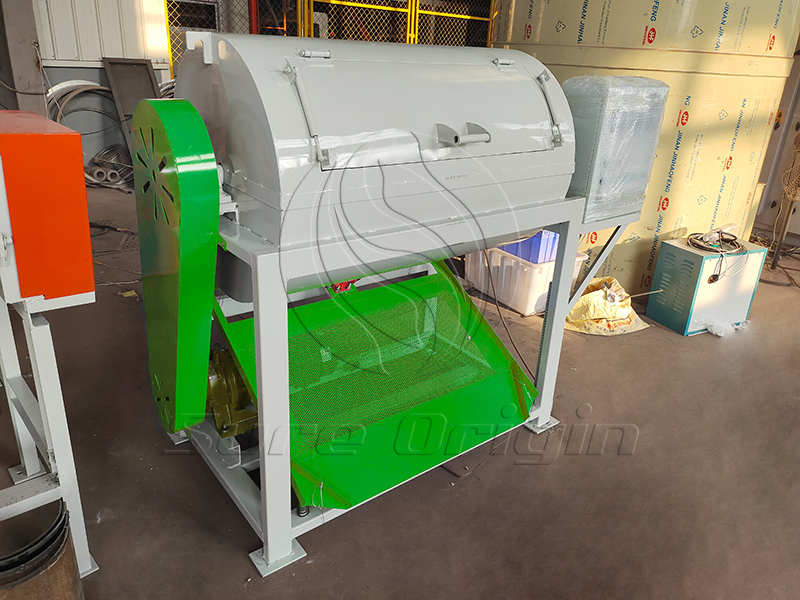

A PCB dismantling machine—also known as a circuit board component separator or waste PCB disassembler—is specialized recycling equipment designed to separate electronic components from waste printed circuit boards (PCBs) efficiently and safely.
It plays a crucial role in the electronic waste (e-waste) recycling process, serving as the first step before material recovery and metal extraction. By using heat or mechanical action, the machine removes valuable components such as resistors, capacitors, IC chips, transistors, and diodes from discarded circuit boards without damaging or burning them.
The PCB dismantling machine not only improves the recovery efficiency of valuable electronic parts but also minimizes environmental pollution, making it an essential tool in sustainable e-waste management.
Purpose of PCB Dismantling
Printed Circuit Boards (PCBs) contain a complex mix of materials—metals, resins, fiberglass, and electronic components. Before metals like copper, gold, silver, tin, and palladium can be recovered, it is necessary to separate the mounted components.
Manual dismantling is labor-intensive, time-consuming, and potentially hazardous due to lead solder fumes and toxic substances. The PCB dismantling machine automates this process, increasing efficiency and ensuring worker safety through controlled temperature processing and dust-free operation.
Main Components of a PCB Dismantling Machine
A modern PCB dismantling machine is typically composed of the following key parts:
Feeding Conveyor or Hopper:
Used to feed waste circuit boards into the dismantling chamber in a controlled manner.
Heating Chamber (Dismantling Oven):
The core section of the machine. It heats the PCBs to a specific temperature (usually 180–250°C) to soften the solder joints without burning the components.
Rotating Drum or Vibrating Platform:
The mechanism that agitates the boards, causing components to loosen and fall off once solder is softened.
Collection System:
Separated components fall through openings into a collection tray or conveyor for further sorting and recovery.
Smoke and Fume Extraction System:
Equipped with a cyclone dust collector, activated carbon filter, and smoke scrubber to remove fumes and prevent toxic gas emissions.
Control Cabinet (PLC System):
Regulates temperature, rotation speed, and dismantling time with automatic safety and emergency controls.
Frame and Insulation Structure:
Built with high-temperature resistant materials to ensure safe and stable operation.
Working Principle
The PCB dismantling machine uses thermal decomposition and mechanical separation to remove electronic components efficiently:
Feeding:
Waste PCBs are loaded into the machine manually or via conveyor.
Heating:
The heating chamber raises the temperature to around 200°C, which is sufficient to melt the solder joints but not high enough to burn the board or components.
Agitation or Rotation:
The boards are tumbled or vibrated gently so that components detach once solder melts.
Collection:
Detached components fall into collection bins or conveyors below the drum.
Cooling and Sorting:
The separated components cool naturally or via an air blower and are then sorted manually or automatically for further recovery (e.g., ICs, capacitors, resistors).
Air Filtration:
Exhaust gases are filtered through multi-stage purification to remove particulate matter and harmful vapors, ensuring compliance with environmental regulations.
Features and Advantages
High Efficiency:
Automatically dismantles components from circuit boards quickly and evenly.
Safe and Eco-Friendly:
Equipped with sealed chambers and smoke treatment systems to prevent toxic emissions.
Precise Temperature Control:
Ensures solder melts without burning components or substrates.
Energy Efficient:
Uses heat recycling and insulation to minimize energy loss.
Wide Application:
Suitable for all types of PCBs — including computer motherboards, mobile phone boards, household appliance control boards, and communication devices.
