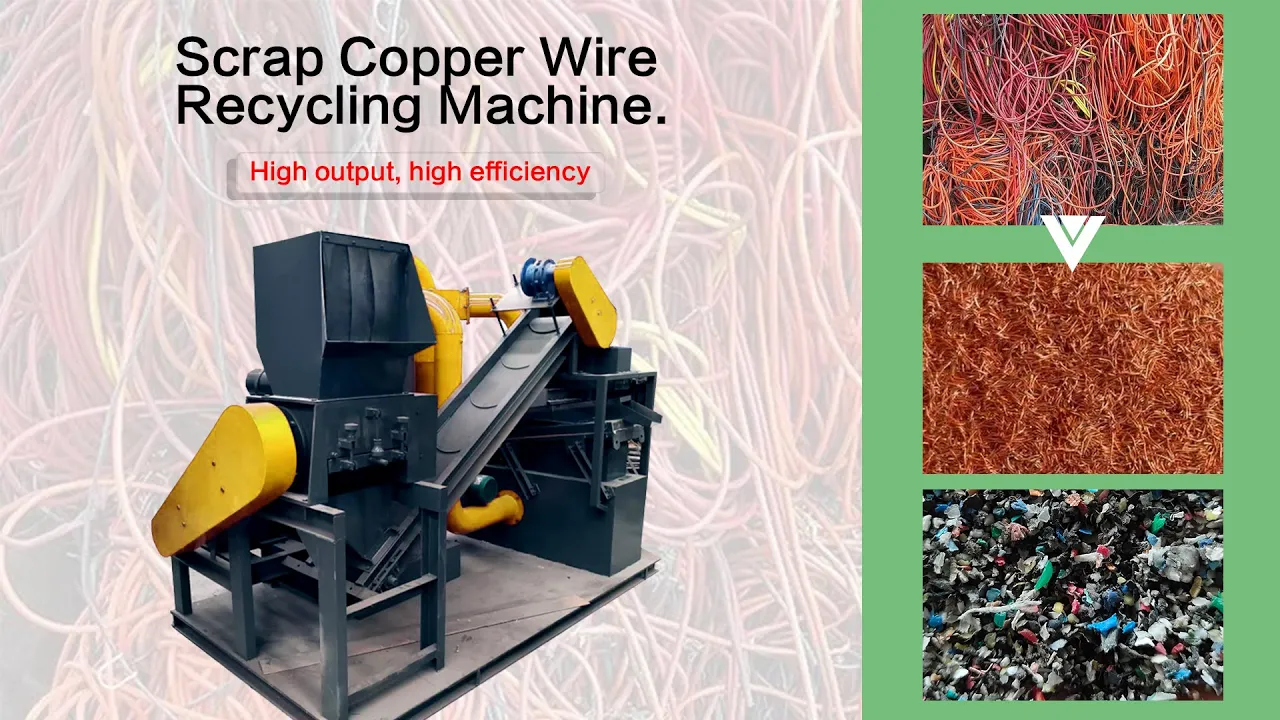

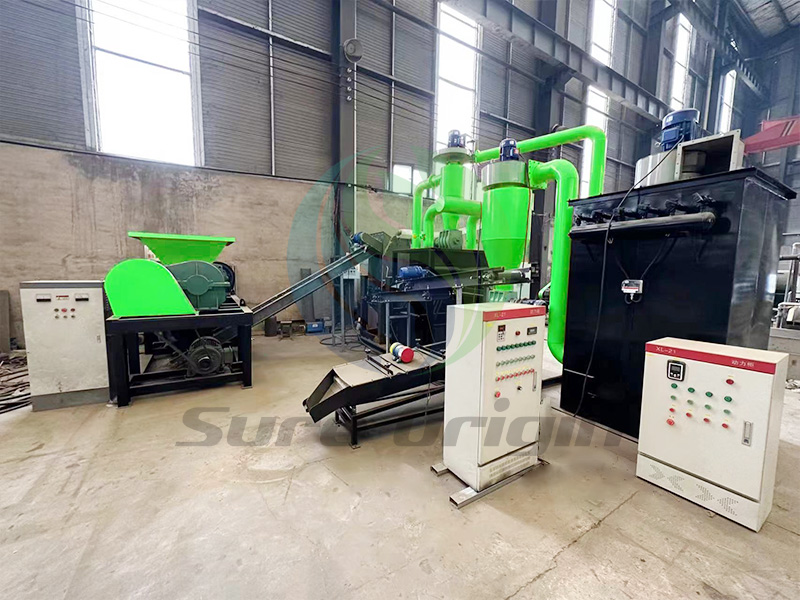

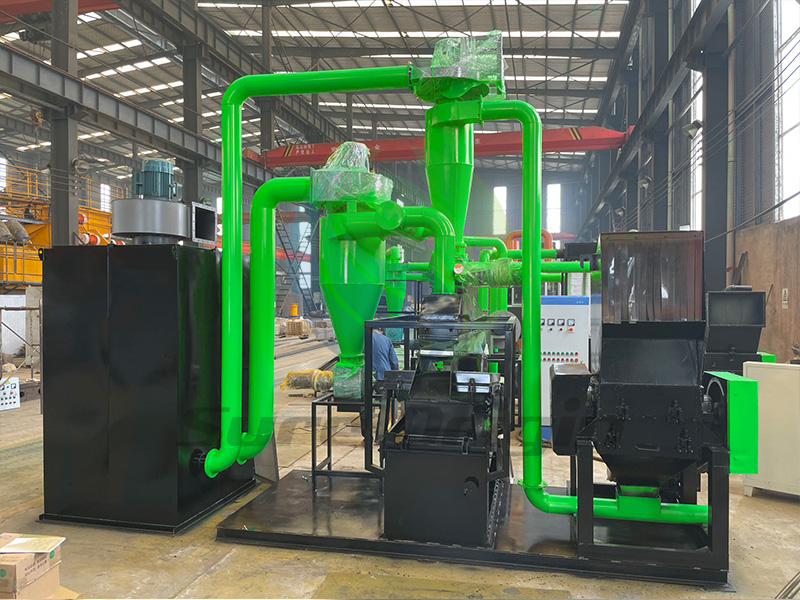

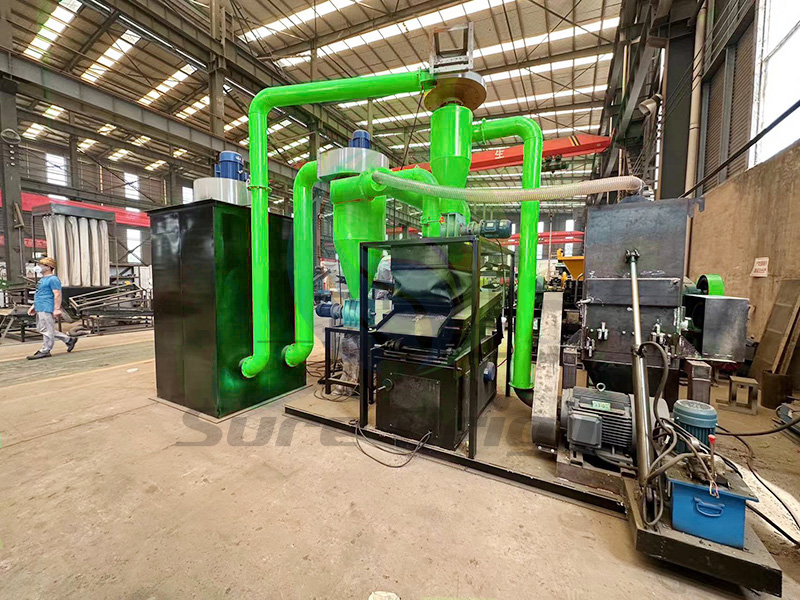

SY-1200 cable recycling line is widely used in recycling scrap copper wire to separated copper and plastic, with dry physical crushing method generates no pollution. Processing capacity is 800-1000KG/H. It can be broken and separated without classification. It's your best choice for recycling scrap copper wire. Sure-Origin cable recycling line can recycle and treat waste automobile wires, car bottom wires, motorcycle wires, computer wires and communication cable, etc. According to different materials and processing capacity, the configuration can be adjusted so that the purity of metal and plastic separation is as high as 99.9%.
1. The main body of TM-1200 is efficient design wire granulator.
2. TM-1200 copper cable granulator is equipped with a pre-shredder for higher efficiency.
3. Air gravity separator system is necessary to accomplish the first separation process.
4. The air conveyor will transport waste cables granulas to air gravity separator automatically.
5. TM-1200 cable granulator machine is also equipped with 4 vibrating tables to finish secondary separation to get purer copper granules.
6. Configured with magnetic separator, even if there are some iron in the raw material, you can still get pure copper.
7. If you pursue a very high recycling rate or you have very thin wires(Especially the diameter of copper wire is less than 1mm), welcome you talk to our specialist for more machine solutions.
Recyling Process
1. Feed the waste cable into the main crusher, the main crusher will process the waste cable into mixed copper-plastic particles.
2. The air separator uses physical methods to separate the mixed copper-plastic particles to obtain relatively clean copper particles and plastic particles.
3. Two small vibrating tables separates copper granules and plastic granules again to get pure copper and pure plastic.
Features
1. Large handling capacity, suitable for large scale production.
2. Manual feeding material for one time, multiple machines combined for automatic separation.
3.Adopting PLC to control the whole system, having stable performance.
4. The copper recycling rate can reach 99%.
5. The plant adopts air and vibration separation, no water pollution.
6.Equipped with dust collector, no dust pollution.
7.The voltage can be customized according to your requirements.
With the multi-layered and diverse Sure Origin product range, you will find the perfect
recycling solution for your business, customised to suit your requirements and needs.
Sure Origin engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. Sure Origin always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
Sure Origin's service for recycling machines is now available worldwide. Sure Origin’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Sure Origin technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. Sure Origin holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from Sure Origin guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
